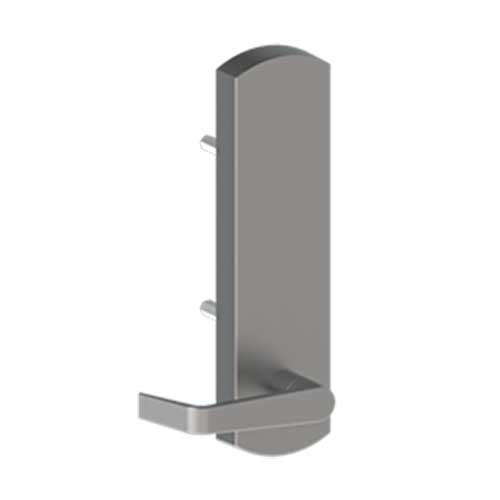

Hager 45BE Exit Trim - Passage Blank Escutcheon
The Hager 45BE is a heavy-duty commercial exit device trim designed for openings that require a clean, professional appearance without a keyed cylinder or active lever. Known as a Passage / Blank Escutcheon function, this trim features a narrow-profile plate that covers the exterior prep of the door. It is the ideal solution for emergency exits, utility doors, and secondary egress points where exterior entry is not required, but a uniform architectural look must be maintained across the facility.
Durable Design and Low-Profile Security
Engineered to complement the Hager 4500 Series exit devices, the 45BE trim is constructed from high-quality materials to withstand the rigors of exterior exposure and institutional use. Because it has no moving parts or exposed cylinders, it provides a vandal-resistant exterior surface that prevents unauthorized tampering or "shimming" of the lock mechanism. This trim is a staple for schools, warehouses, and industrial complexes where exterior access is restricted to primary entrances only.
Seamless Integration and Finish Matching
The Hager 45BE is designed for a precise fit with RIM, Surface Vertical Rod, and Concealed Vertical Rod exit devices. Its minimalist escutcheon plate design ensures it doesn't interfere with door aesthetics while providing a rugged protective cover. To ensure a cohesive look throughout your building, the 45BE is available in industry-standard finishes, including Satin Chrome (US26D) and Dark Bronze (US10B), allowing it to match existing Withnell, Archer, or August style hardware.
Technical Specifications
| Feature | Specification |
| Series | Hager 4500 Series Trim |
| Function | Passage / Blank Escutcheon (45BE) |
| Trim Type | Narrow Escutcheon Plate |
| Compatibility | Hager 4501 RIM, 4501-FR, 4500 SVR/CVR |
| Escutcheon Dimensions | 3" x 10" (76 mm x 254 mm) |
| Projection | 1/2" (13 mm) |
| Material | Zinc or Stainless Steel (Finish Dependent) |
| Fasteners | Thru Bolts (Supplied Standard) |
| Handing | Non-Handed |
Standards, Compliance & Installation
- Durability: Exceeds ANSI/BHMA A156.3 Grade 1 standards for commercial trim.
- Vandal Resistance: The solid, blank face eliminates points of attack for unauthorized entry.
- Fire Safety: UL/cUL Listed for use on fire-rated doors when paired with Hager FR exit devices.
- Secure Attachment: Utilizing thru bolts (sex bolts) is standard, ensuring the trim remains permanently flush against the door leaf without loosening over time.
Key Product Highlights
- Clean Architectural Profile: Provides a finished look for doors that do not require exterior access hardware.
- Institutional Longevity: Built to the same rigorous standards as the Hager 4500 exit device line.
- Universal Handing: Non-handed design simplifies ordering and field installation on both left and right-handed doors.
- Vandal-Proof Construction: No levers to pull or cylinders to pick, making it the most secure "no-entry" trim option available.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| Brand | Hager |
| Series | Hager - 4500 Series |
| Exit Device Trim Function | Passage |
| Door Handing | Field Reversible |
