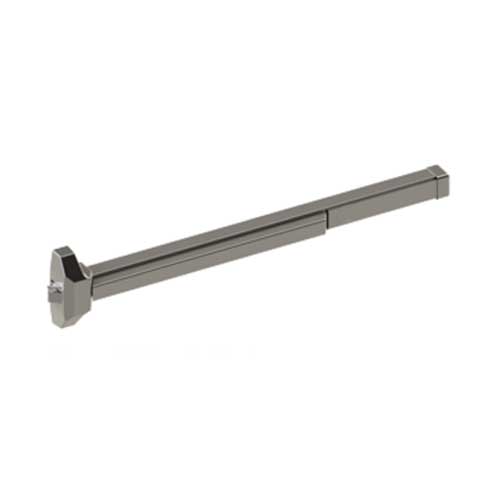

Hager 4701-FR Rim Exit Device – Grade 1 Fire Rated Panic Bar for 48" Doors
The Hager 4701-FR Rim Exit Device (4'0" Model) is a high-performance, fire-rated solution specifically engineered for wide-opening doors in light commercial environments. While the standard 4700 series excels on standard stile doors, the FR (Fire Rated) designation ensures this hardware meets the rigorous demands of life safety and fire code compliance. It is an essential component for wide corridors, protected stairwells, and main exit doors in office complexes, retail centers, and small businesses.
Certified as a BHMA Grade 1 device—the highest industry benchmark for security and cycle life—the 4701-FR provides robust protection for high-traffic areas. The hardware features a Stainless Steel Pullman-style latchbolt with a 5/8" throw. This automatic dead-latching mechanism is designed to keep wide doors securely latched during a fire event while permitting immediate, effortless egress for occupants.
Maximum Coverage for Fire-Rated Openings
Sized specifically for 48" (4'0") wide doors, this model provides maximum coverage for oversized entryways. The extended housing ensures that the push pad is accessible across a larger target area, meeting strict accessibility standards for larger facilities. Unlike standard panic-only models, this UL Listed Fire Rated unit is mandatory for any wide door assembly that must maintain a legal fire rating.
Key Features
- UL Fire Rated (FR): Labeled and certified for use on fire-rated door assemblies.
- Wide Door Optimization: Sized for doors between 37" and 48" wide (can be field-cut for accuracy).
- Grade 1 Performance: BHMA certified to withstand heavy commercial use and high-frequency cycles.
- Stainless Steel Pullman Latch: 5/8" (16 mm) latchbolt provides a secure, automatic dead-latch.
- Non-Handed Design: Reversible for easy installation on both left and right-hand swinging doors.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 4701-FR-48 (Rim) |
| Certification | BHMA Certified Grade 1 |
| Fire Rating | UL Listed Fire Rated (FR) |
| Door Width Range | 3'1" to 4'0" (37" to 48" Doors) |
| Latchbolt | 5/8" (16 mm) Stainless Steel Pullman Style |
| Door Type | Standard Stile (Hollow Metal or Wood) |
| Finishes | ALM, BLK, DBZ, US3, US32D |
| Warranty | Manufacturer Standard |
Premium Finish Options
Available at DoorwaysPlus.com, the Hager 4701-FR is offered in several architectural finishes to match your facility's design:
- Aluminum (ALM): A modern, professional look for contemporary office spaces.
- Black (BLK): A bold, high-contrast finish for striking architectural aesthetics.
- Dark Bronze (DBZ): Classic and elegant, perfect for traditional commercial settings.
- Stainless Steel (US32D): Exceptionally durable and corrosion-resistant for high-traffic entryways.
- Polished Brass (US3): Provides a high-end, classic gold look for sophisticated interiors.
Professional Installation Note
For wide doors with decorative trim or glass bead kits that might interfere with the exit device chassis, DoorwaysPlus.com recommends the Hager 4931R Rim Device Shim Kit. This ensures that your Grade 1 Fire Rated hardware is mounted on a stable, level surface, maintaining the integrity of the fire assembly.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 693 - Painted, Black or 695 - Painted, Stat Dark Bronze |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Type | Rim Exit Device |
| Exit Device Fire Rating | Fire Rated Door |
| Door Opening Width | 48 Inches |
