Hager 5300 Series: Grade 1 Heavy-Duty Aluminum Door Closers & Parts
The Hager 5300 Series is a heavy-duty, Grade 1 certified surface closer engineered for high-use environments like schools, hospitals, and busy retail centers. Constructed from a high-strength aluminum alloy, this series provides smooth, dependable door control with a compact footprint. Hager stands behind the 5300 with an industry-leading lifetime warranty, making it a zero-risk solution for facility managers looking for long-term reliability and ADA compliance.

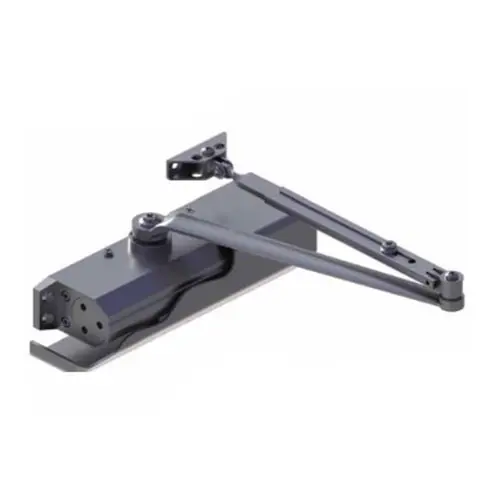

Hager 5300 Series
The Hager 5300 Series is the ideal choice for new construction or easy retrofitting, featuring the standard 3/4" x 9-1/16" mounting hole pattern. This series is fully adjustable (sizes 1–6) and comes tri-packed for Regular, Parallel, or Top Jamb mounting. With staked valves to prevent accidental removal and a 3-hour UL fire rating, the 5300 Series offers precision control over backcheck, sweep, and latching speeds in a non-handed, universal design.
Download the Hager 5300 Series Catalog to explore technical specs, dimensional drawings, and architectural finishes including Aluminum (ALM) and Dark Bronze (DBZ). This guide details a wide array of specialized arm options, such as Extra Heavy-Duty Stop Arms for abusive environments and Delayed Action valves for accessible entryways.
Download the official Hager 5300 Series Installation Templates to ensure precise mounting for Regular Arm, Parallel Arm, or Top Jamb applications. These technical drawings provide the exact coordinates for the 5300's compact aluminum body and specialized arm attachments like the Heavy-Duty Dead Stop (HDBS). Using factory-verified templates is the only way to guarantee your closer achieves its Grade 1 cycle rating and maintains proper ADA opening force geometry without extra holes in your door or frame.
Hager 5300 Series Mounting Template
Hager 5300 Series Parallel Arm Mounting Template
Hager 5300 Series Regular Arm Mounting Template
Our Hager 5300 Installation Guide provides clear templates for all three mounting positions. It includes specific instructions for adjusting the independent speed regulating valves to ensure your doors meet A117.1 Accessibility Codes. Proper setup with the included Thru bolts (SNB) ensures a secure fit on wood or hollow metal doors.
Hager 5300 Series
Shop our stock of Hager 5300 Multi-Mount Closers. Each unit is shipped complete with a full plastic cover, pinion cap, and all necessary fasteners. These closers are engineered to handle interior doors up to 48" and exterior doors up to 36", making them one of the most versatile Grade 1 options in the Hager lineup.
