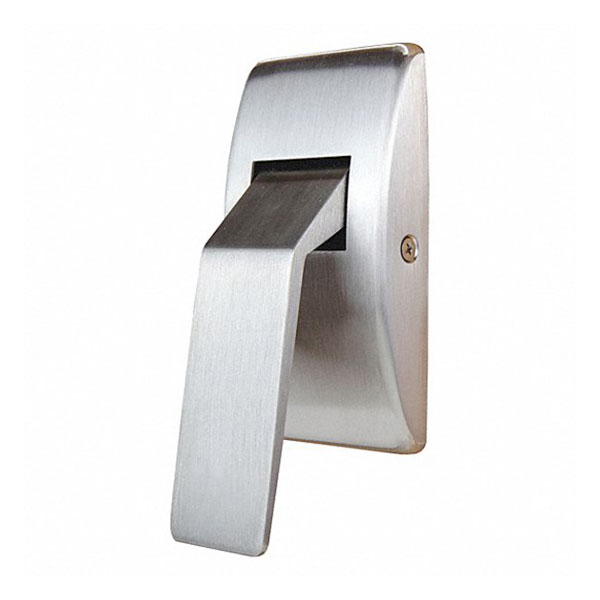

ABH 6819 Low Profile Push/Pull Latchset – Satin Stainless Steel (US32D)

The ABH Manufacturing 6819 is a commercial-grade low profile push/pull latchset finished in Satin Stainless Steel (US32D / 630) — a durable, corrosion-resistant finish well suited to high-traffic institutional and commercial openings. Designed for doors where a streamlined, low-projection pull profile is preferred, the 6819 delivers reliable latching function without the bulk of traditional lever-set hardware.

ABH Manufacturing is a preferred commercial hardware line carried by DoorwaysPlus, recognized for stable product designs and straightforward serviceability on commercial openings.

Key Benefits

• Low profile design — reduced projection keeps the hardware close to the door face, minimizing snag points in high-traffic corridors, healthcare facilities, and institutional environments
• Satin Stainless Steel finish (US32D) — resists corrosion and wear; maintains a clean appearance in demanding commercial settings; can be refinished to original appearance without replacement
• Push/pull latchset function — provides positive latching on the active leaf while allowing easy push or pull operation; suitable for interior passage openings requiring controlled access without a keyed cylinder
• Commercial-grade construction — built to withstand medium-to-high frequency use in offices, schools, healthcare corridors, and institutional buildings
• Architectural finish compatibility — US32D (630 / Satin Stainless) coordinates with stainless steel kick plates, push plates, and other architectural hardware on the same opening

Typical Applications

• Commercial office corridor doors and suite entries
• Healthcare and hospital interior doors where hygienic, easy-clean hardware is required
• School and university interior openings
• Institutional and government facility passage doors
• Any commercial opening specifying a low-profile push/pull latchset in satin stainless

Technical Details

Need a comparable push/pull latchset from another preferred commercial hardware line? DoorwaysPlus can quote alternatives from Rockwood, Hager, and other preferred architectural hardware manufacturers — contact our team for specifications and pricing.

The ABH 6819 is a Grade 1, heavy-duty low profile push/pull latchset designed specifically for Right Hand (RH) door applications in demanding healthcare and institutional environments. Engineered as a premier solution for door restoration, this latchset features a specialized Push Down / Pull Down handle orientation. Crafted from architectural-grade stainless steel, the 6819 model provides a sleek, modern aesthetic while serving as a robust solution for commercial door convenience and universal accessibility.

Specialized Ergonomics for Healthcare & High-Traffic Access

The ABH 6819 is designed to facilitate effortless door transitions in fast-paced environments where hands-free access is a necessity for staff and patient safety:

• Intuitive Push Down / Pull Down Action: This specific configuration is optimized for Right Hand doors, allowing users to activate the latch with a natural downward motion on either side. This is an ideal solution for door surface repair in medical environments where staff frequently use elbows or hips to open doors while transporting equipment.

• Low Profile Architectural Footprint: With a slim cover projection of only 7/8" and a handle projection of 2-5/8", the 6819 significantly reduces the footprint on the door face. This prevents the hardware from catching on passing hospital stretchers, equipment carts, or pedestrians in narrow corridors.

• ADA Compliant Accessibility: Engineered to require less than 5 lbs of force for operation, ensuring the opening remains fully accessible and in total compliance with all ADA requirements.
• Patented Linear Acting Cam: Features a high-efficiency internal cam (Patent #7,258,374) that provides a smoother, more fluid motion than traditional pivot-style latches, reducing mechanical friction and user effort.


Industrial Stability with Thru-Bolt Engineering

The ABH 6819 is a Grade 1 architectural component built to withstand millions of cycles in the most demanding 24/7 institutions:

• Four Thru-Bolt Security: To ensure the unit remains rigid and perfectly aligned over time, the trim is mounted using four thru bolts. This heavy-duty "sandwich" installation provides maximum stability and serves as a robust solution for door edge reinforcement.

• Architectural Satin Stainless Steel: Finished in US32D (630), the 6819 is naturally corrosion-resistant, easy to sanitize, and maintains a premium appearance in both clinical and executive environments.

• Field-Reversible Flexibility: While specifically handed for Right Hand openings, the internal cam holder assembly is field-reversible, providing a versatile solution for door restoration should door functions or swings change during facility renovations.

• UL Fire Rated Protection: UL Listed for use on fire-rated doors (up to 90 minutes), ensuring your facility meets the highest standards for life safety and fire code compliance.


Technical Details & Specifications

• Brand: ABH Manufacturing
• Model: 6819 (Low Profile Series)

• Handing: Right Hand (RH)
• Operation: Push Down / Pull Down
• Finish: US32D / 630 (Satin Stainless Steel)
• Standard Door Thickness: 1-3/4” (Custom thicknesses available)

• Mounting: Four-Bolt Thru-Bolt Design
• Certifications: ANSI/BHMA Grade 1, ADA Compliant, UL Listed

Why Choose the ABH 6819?

For facilities that require the rugged durability of a hospital-grade latch with a modern, low-profile aesthetic, the ABH 6819 is the definitive choice. Its heavy-duty thru-bolt stability and specialized Push Down / Pull Down movement make it a reliable, long-term solution for door restoration. By combining ease of access with superior mechanical integrity, the 6819 ensures that your high-traffic commercial doors remain secure, compliant, and effortless to operate.
