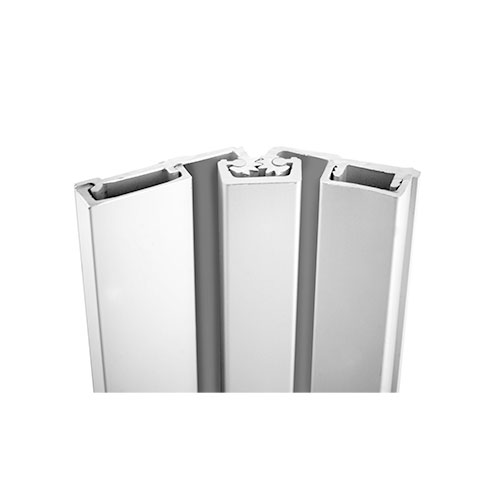

ABH A570HD-83 HingeKing Full Surface Continuous Hinge
The ABH A570HD-83 is a heavy-duty, aluminum continuous geared hinge designed for high-traffic commercial doors. This Full Surface hinge is the ultimate solution for permanent door and frame repair, providing a "Narrow Frame" profile that fits in spaces as tight as 7/8". Engineered to support doors up to 450 lbs, it eliminates the stress placed on traditional butt hinges by distributing the weight evenly along the entire length of the frame.
Key Features & Benefits
- Versatile Fit: Specifically designed for narrow-faced frames with a minimum mounting space of 7/8".
- Heavy-Duty Capacity: Rated for doors up to 48" wide and 450 lbs, making it ideal for high-use entrances.
- Customizable Length: The standard 83" length can be field-cut down to 79" without interfering with bearings or mounting holes.
- Fire-Safety Rated: UL listed for up to 90-minute metal fire doors and 60-minute wood fire doors.
- Complete Install Kit: Ships with all necessary fasteners, including self-drilling TEK machine screws for the frame and secure sex-bolts for the door.
| Feature | Specification |
| Mounting Type | Full Surface (Narrow Frame) |
| Minimum Frame Space | 7/8" |
| Door Inset | 1/16" |
| Max Door Weight | 450 lbs |
| Material | Extruded Aluminum (HingeKing Geared Design) |
| Fasteners | 12-24 TEK Screws (Frame) / Sex-Bolts (Door) |
Why Choose the A570HD for Your Facility?
Standard hinges often fail when the door or frame becomes stripped or warped. The A570HD acts as a permanent replacement, covering existing damage and reinforcing the opening. Its 1/16" inset ensures a precise fit for flush door applications, while the geared design provides effortless swing even on the heaviest commercial doors.
| General - US Finishes | US28 - 628/ Anodized Aluminum or 313 - Dark Bronze Anodized or 315 - Black Anodized Aluminum |
| Brand | ABH Mfg |
| Hinge Type | Full Surface, Continuous Hinge |
| Continuous Hinge Height | 83 Inch (7/0 Dr) |
| Continuous Hinge Grade | Heavy Duty |
