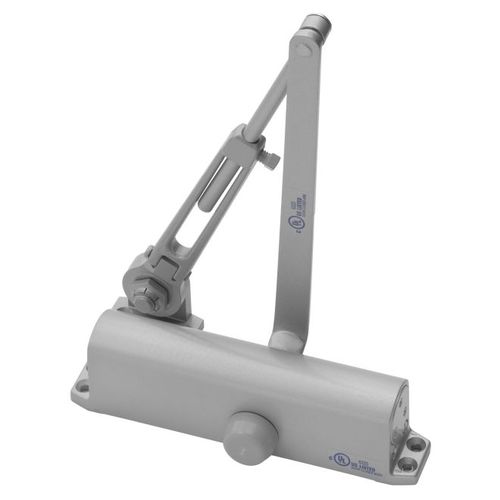

Accentra 1111BF Grade 1 Commercial Door Closer with Friction Hold Open Arm
The Accentra 1111BF Door Closer (formerly the Yale 1100 Series) is a high-intent, industrial-grade solution designed for facilities that require flexible door control and heavy-duty reliability. This model features a specialized Friction Hold Open Arm, making it the perfect choice for stockrooms, offices, and retail entrances where doors need to remain open during deliveries or peak foot traffic.
Engineered for performance and ease of access, the 1111BF is a Barrier Free (BF) closer with adjustable spring power from Sizes 1 through 4. This allows facility managers to meet strict ADA (Americans with Disabilities Act) opening force requirements while maintaining a smooth, controlled closing cycle.
Key Performance & Installation Features
- Friction Hold Open Functionality: The architectural-grade arm allows the door to be held open at a specific degree. To return the door to standard closing operation, a simple manual pull disengages the friction hold.
- Universal Retrofit Compatibility: Features the industry-standard 9-1/16" x 3/4" mounting hole pattern. This allows for a seamless, "no-drill" replacement of the Norton 1600, LCN 1260, and Sargent 1130.
- Tri-Packed Mounting Versatility: Includes all necessary hardware for Regular, Parallel, or Top Jamb mounting. This ensures the 1111BF arrives ready for installation on either the push or pull side of the door.
- Precision Hydraulic Control: Features three independent, non-critical valves to customize Closing Speed, Latching Speed, and Backcheck (to cushion the door during a forceful opening).
- Rugged Construction: Built with a durable cast aluminum body and high-precision rack-and-pinion operation for maximum cycle life in commercial settings.
- Non-Handed Design: Simplifies installation by working seamlessly on both left and right-hand door swings without field modification.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 1111BF |
| Arm Type | Friction Hold Open |
| Power Size | Adjustable 1–4 (Barrier Free) |
| Hole Pattern | 9-1/16" x 3/4" (Standard Retrofit) |
| Material | High-Strength Cast Aluminum |
| Mounting | Tri-Packed (Regular, Parallel, Top Jamb) |
| Valves | Sweep, Latch, and Backcheck |
| Fasteners | Thru Bolts (Sleeve Nuts) included standard |
| Warranty | 5-Year Limited Warranty |
Professional Mounting & Durability
The Accentra 1111BF is engineered for a permanent, high-strength mount. To ensure the closer remains secure on hollow metal or wood doors that experience frequent use, this unit is shipped standard with thru bolts (1-3/4" sleeve nuts). These thru bolts provide the essential structural stability required to prevent the hardware from loosening over time, even in demanding high-traffic environments.
| General - US Finishes | 689 - Spray Alumimun or 690 - Spray Dark Bronze |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 1100 Series |
| Closer Arm Type | Hold Open - Friction |
| Hold Open | Hold Open |
| Closer Body Hole Pattern | 9 1/16" x 3/4" |
