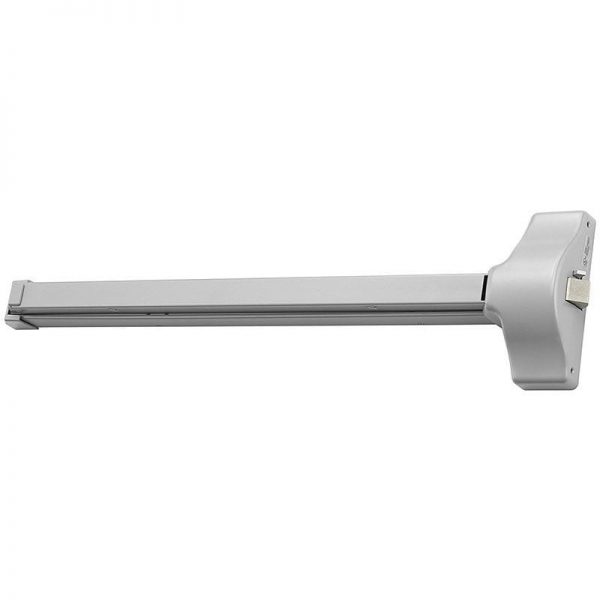

Accentra 1800F Grade 1 Fire-Rated Rim Exit Device | Exit Only
The Accentra 1800F Rim Exit Device (formerly Yale) is a high-intent, life-safety hardware solution engineered specifically for fire-labeled openings. This Grade 1 Fire-Rated Exit Device provides the ultimate combination of security and emergency egress for high-traffic commercial environments. When life safety and fire containment are non-negotiable, the 1800F Series is the industry-standard choice for hospitals, schools, and high-rise office buildings.
Designed for use on wide stile doors made of metal, wood, or composite materials, the 1800F features a 3-Hour Fire Rating. It includes a specialized steel interlock bracket designed to maintain the critical door-to-mullion relationship during a fire event, ensuring the structural integrity of the opening remains intact.
Advanced Fire Safety & Security Features
- 3-Hour Fire Rating: UL/cUL Listed for fire exit hardware (GXHX) on 4' x 8' single doors and 8' x 8' pairs, providing maximum protection against fire spread.
- ANSI/BHMA Grade 1 Certified: Rigorously tested to meet A156.3 Type 1, Grade 1 standards, guaranteeing long-term durability in high-use institutional settings.
- Steel Interlock Bracket: Shipped standard with fire-labeled devices to ensure the door stays securely latched against the strike or mullion under the extreme heat of a fire.
- Non-Handed Architecture: The universal design allows for seamless installation on both left and right-hand doors, reducing installation time and ordering complexity.
- No Dogging (Fire-Rated Requirement): In strict accordance with fire codes, this fire-rated device does not feature mechanical dogging, ensuring the latchbolt is always engaged to keep the fire door closed.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 1800F (Exit Only) |
| Device Type | Fire-Rated Rim Exit Device |
| Fire Rating | UL 10C / 3-Hour Listed |
| Grade | Grade 1 Heavy-Duty |
| Door Width | -36 (for 30"-36" doors) or -48 (for 42"-48" doors) |
| Minimum Stile | 4-1/2" (114mm) |
| Projection | 2-1/2" Active / 1-3/4" Depressed |
| Strike | 757F Standard |
| Finishes | 689 (Aluminum Silver) |
| Warranty | 1-Year Limited Warranty |
Professional Installation & Code Compliance
The Accentra 1800F is designed for a permanent, high-strength mount. To ensure compliance with most fire-rated door specifications, we recommend using thru bolts to achieve a secure, "sandwich-style" attachment that prevents the device from pulling through the door material. This "Exit Only" model can be easily converted for exterior access by pairing it with Accentra Exit Device Trim, such as the 420F Series Escutcheon or 440F Series Rose Trim.
| General - US Finishes | 689 - Spray Alumimun or 695 - Spray Dark Bronze |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | Rim Exit Device |
| Series | Accentra - 1800 Series |
| Exit Device Fire Rating | Fire Rated Door |
