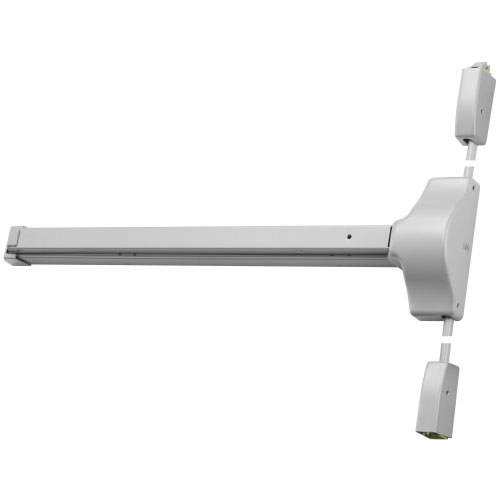

Accentra 1810 Surface Vertical Rod Exit Device | 36" x 84" Door | Exit Only
The Accentra 1810 Surface Vertical Rod (SVR) Exit Device (formerly Yale) is a high-intent, architectural-grade life safety solution engineered specifically for pairs of doors and double egress openings. This Grade 1 Surface Vertical Rod Device provides superior two-point latching security, securing the door at both the top and bottom of the frame. Ideal for high-traffic commercial environments such as schools, retail centers, and office complexes, the 1810 Series ensures reliable emergency egress while maintaining the structural integrity of the door opening.
Designed for wide stile and flush doors made of metal, wood, or composite materials, the 1810 features a Pullman bolt at the top and a simultaneous direct pull bottom deadbolt. A key performance feature of this device is its specialized linkage: when unlatched, the device holds both bolts in the retracted position until the door is shut, preventing "floor-dragging" and hardware damage.
High-Security Latching & Life Safety Features
- Two-Point Latching: Provides maximum security by deadlocking the door at the header and the floor simultaneously, making it the premier choice for double-door applications.
- ANSI/BHMA Grade 1 Certified: Tested to meet A156.3 Type 2, Grade 1 standards, ensuring long-term durability and performance in the most demanding institutional settings.
- Positive Action Linkage: Features a deadlocking top Pullman bolt for secure engagement and a bottom deadbolt for total perimeter protection.
- Hex Key Dogging: Shipped standard with hex key dogging, allowing authorized staff to keep the push bar depressed and the bolts retracted during high-traffic business hours.
- Field Reversible Handing: While the device is handed (please specify Left Hand Reverse or Right Hand Reverse), it is designed to be easily field reversible to accommodate last-minute job site changes.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 1810 (Exit Only) |
| Device Type | Surface Vertical Rod (Panic Rated) |
| Grade | Grade 1 Heavy-Duty |
| Door Size Compatibility | 36" Width x 84" Height (3'0" x 7'0") |
| Door Thickness | 1-3/4" (44mm) Standard |
| Minimum Stile Width | 4-1/2" (114mm) |
| Top Strike | Roller Type 791 |
| Bottom Strike | Flush Mounted 790 |
| Projection | 2-1/2" Active / 1-3/4" Depressed |
| Finishes | 689 (Aluminum Silver) |
| Warranty | 1-Year Limited Warranty |
Professional Installation & Compatibility
The Accentra 1810 is engineered for permanent, high-strength mounting. For hollow metal or wood doors subject to frequent use, we highly recommend the use of thru bolts to ensure a secure "sandwich-style" attachment that will not loosen over time. While this configuration is "Exit Only," it is fully compatible with Accentra Exit Device Trim, including the 420F Series Escutcheon or 440F Series Rose Trim, for applications requiring exterior keyed access.
| General - US Finishes | 689 - Spray Alumimun or 695 - Spray Dark Bronze |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 1800 Series |
| Exit Device Type | SVR Exit Device |
| Door Opening Width | 36 Inches |
| Door Height | 7'0" Dr Ht |
| Exit Device Fire Rating | Non Rated Door |
