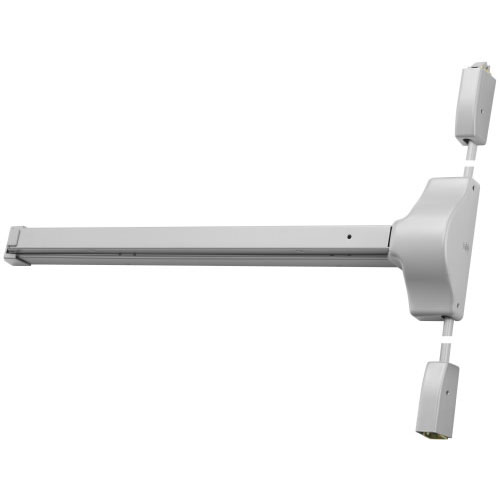

Accentra 1810F Grade 1 Fire-Rated Surface Vertical Rod Exit Device | Exit Only
The Accentra 1810F Surface Vertical Rod (SVR) Exit Device (formerly Yale) is a high-intent, life-safety solution engineered specifically for fire-labeled pairs of doors and double egress openings. This Grade 1 Fire-Rated Exit Device provides essential two-point latching, securing the door at both the head and the floor to ensure maximum structural integrity during a fire event. As an industry standard for hospitals, schools, and high-rise commercial buildings, the 1810F Series is the premier choice for maintaining 3-hour fire-door compliance while providing safe, immediate emergency egress.
Designed for wide stile and flush doors made of metal, wood, or composite materials, the 1810F features a deadlocking top Pullman bolt and a simultaneous direct-pull bottom deadbolt. Its specialized "positive action" linkage ensures that when the device is unlatched, both bolts remain retracted until the door is shut, preventing unsightly floor damage and hardware wear.
Advanced Fire Safety & Two-Point Security
- 3-Hour Fire Rating: UL/cUL Listed for fire exit hardware (GXHX) on pairs of doors up to 8' x 8'. This ensures the opening remains sealed against fire and smoke for up to three hours.
- ANSI/BHMA Grade 1 Certified: Rigorously tested to meet A156.3 Type 2, Grade 1 standards, guaranteeing long-term durability in high-traffic institutional environments.
- Two-Point Deadlocking: Secures the door at the top and bottom simultaneously, offering significantly higher security and door stability than a standard rim device on double doors.
- No Dogging (Fire-Rated Requirement): In strict accordance with fire-life safety codes, this fire-labeled device does not include mechanical dogging, ensuring the door is always latched and ready to contain a fire.
- Field Reversible Handing: While this device is handed (please specify LHR or RHR), the design is field reversible to accommodate last-minute changes in door orientation on the job site.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 1810F (Exit Only) |
| Device Type | Fire-Rated Surface Vertical Rod (SVR) |
| Fire Rating | UL 10C / 3-Hour Listed |
| Grade | Grade 1 Heavy-Duty |
| Door Width Compatibility | -36 (30"-36" Doors) or -48 (42"-48" Doors) |
| Standard Door Height | 84" (7'0") |
| Minimum Stile Width | 4-1/2" (114mm) |
| Top Strike | Roller Type 791 |
| Bottom Strike | Flush Mounted 790 |
| Finishes | 689 (Aluminum Silver) |
| Warranty | 1-Year Limited Warranty |
Professional Installation & Code Compliance
The Accentra 1810F is engineered for a permanent, high-strength mount. To meet the requirements of most fire-rated door manufacturers and to ensure the hardware never loosens under constant use, we highly recommend the use of thru bolts for a secure "sandwich-style" attachment. This "Exit Only" device is fully compatible with Accentra Exit Device Trim, such as the 420F Series Escutcheon or 440F Series Rose Trim, allowing for keyed exterior access where required.
| General - US Finishes | 689 - Spray Alumimun or 695 - Spray Dark Bronze |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | SVR Exit Device |
| Series | Accentra - 1800 Series |
| Door Height | 7'0" Dr Ht |
| Exit Device Fire Rating | Fire Rated Door |
