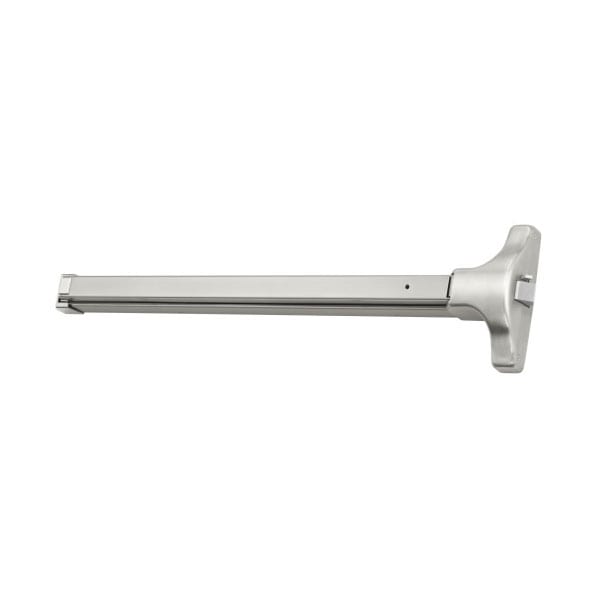

Accentra 2100 Rim Exit Device | Grade 1 Panic Rated | Exit Only
The Accentra 2100 Rim Exit Device (formerly Yale) is a high-intent, heavy-duty commercial panic bar engineered for maximum life safety and security. As an ANSI/BHMA Grade 1 certified device, the 2100 Series is the premier choice for high-traffic public buildings, including schools, healthcare facilities, and retail centers. This rim exit device is designed for "Exit Only" applications but offers the flexibility to be paired with a wide range of exterior trims for keyed access.
Constructed for wide stile doors made of hollow metal, wood, or composite materials, the Accentra 2100 features a 3/4" stainless steel deadlocking pullman-type latchbolt. This latchbolt provides superior engagement with the roller strike, ensuring the door remains securely latched against unauthorized entry while allowing for immediate, effortless egress during an emergency.
Industrial Strength & Hurricane Rated Reliability
- Grade 1 Certified Durability: Rigorously tested to meet ANSI/BHMA A156.3 Type 1, Grade 1 standards, ensuring millions of cycles of reliable performance in demanding environments.
- Non-Handed Design: The universal, non-handed architecture simplifies the ordering process and job-site installation, as it fits both left and right-hand door swings seamlessly.
- Windstorm & Hurricane Rated: This device is ZHLA windstorm rated and available in certified hurricane-resistant configurations, making it an essential component for building envelope security in coastal regions.
- Hex Key Dogging: Shipped standard with hex key dogging for panic-rated devices, allowing authorized personnel to manually retract the latchbolt and keep the bar depressed during high-traffic business hours.
- Deadlocking Pullman Latch: The stainless steel pullman latchbolt provides a positive, secure connection to the strike, significantly increasing the force required for forced entry.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 2100 (Exit Only) |
| Device Type | Rim Exit Device (Panic Rated) |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Door Width Compatibility | 36" (3') or 48" (4') Doors |
| Door Thickness | 1-3/4" (44mm) Standard |
| Minimum Stile Width | 4-1/2" (114mm) |
| Latchbolt | 3/4" (19mm) Stainless Steel Pullman-Type |
| Projection | 2-1/2" Active / 1-3/4" Depressed |
| Standard Strike | 757F Roller Strike |
| Finishes | 689 (Aluminum) or 630 (Satin Stainless Steel) |
| Warranty | 3-Year Limited Warranty |
Professional Installation & Configuration
The Accentra 2100 is designed for a permanent, high-strength mount. To ensure the hardware never loosens or pulls away from the door under heavy use, we recommend the use of thru bolts for a secure "sandwich-style" attachment. While this model is an "Exit Only" configuration, it is fully compatible with Accentra Exit Device Trim, including the 620F Series Escutcheon or 440F Series Rose Trim, for applications requiring exterior access.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or 689 - Spray Alumimun |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | Rim Exit Device |
| Series | Accentra - 2100 Series |
| Exit Device Fire Rating | Non Rated Door |
