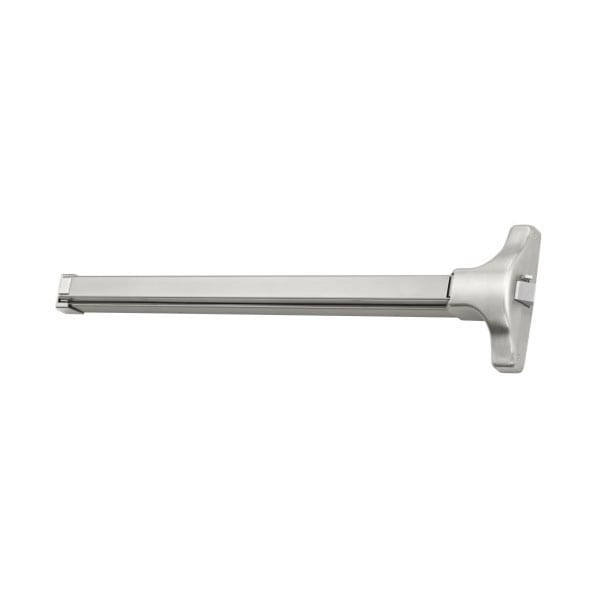

Accentra 2100F Rim Exit Device, Exit Only
The 2100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. The 2100(F) can be paired with a wide variety of trims to meet many applications.- When "F" is added to the 2100 part number it stands for a 3 hour Fire-Rated Exit Device
Applications:
- Single swing doors
- Pairs of doors (mullion required)
- Metal, wood or composite door materials
Certification/compliance:
- UL/cUL Listed: FVSR/FVSR7 - Panic hardware- GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.)- ZHEM - Latching hardware- ZHLA - Windstorm rated assemblies- ANSI/BHMA Certified: A156.3 Type 1, Grade 1
Features:
- Designed for wide stile doors
- Non-handed for easy installation
- Steel interlock bracket maintains door-to-mullion relationship in fire-labeled devices
- Deadlocking pullman latchbolt positively engages roller strike
- Available certified hurricane resistant (refer to local codes). Specify 2100(F)WS
Specifications:
- Door Opening Width: 3' and 4' door widths
- Door Thickness: 1-3/4" (44mm) standard
- Minimum Stile Width: 4-1/2" (114mm)
- Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
- Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type
- Strike: 757F, 793 optional (double door application, panic only)
- Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts
- supplied standard for fire exit hardware.
- Trims: 121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim.
- Dogging: Hex key dogging supplied standard on panic devices
- Finishes: 689 Spray Aluminum or 630 (US32D - Stainless Steel)
- Options: Cylinder dogging, shim kit #223, sex nuts and bolts, MicroShield®
- Warranty: 3-year limited
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or 689 - Spray Alumimun |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | Rim Exit Device |
| Series | Accentra - 2100 Series |
| UL Label Door | Fire Rated Door |
ASSA ABLOY ACCENTRA 1800(F), 2100(F) Wide Stile Rim 757F Strike Metal Door and Frame or Mullion Template.pdf
Download
ASSA ABLOY ACCENTRA 2100 Series 2100(F)WS Wide Stile Rim Single Door Installation Instructions.pdf
Download
ASSA ABLOY ACCENTRA M200(F) Steel Mullions for 1500, 1800, 2100, 6000, and 7000 Series Narrow and Wide Stile Rim, SquareBolt Installation Instructions.pdf
Download
Accentra 2100 Series Catalog.pdf
Download
Accentra 793 Double Door Strike for 1800 _ 2100 Series.pdf
Download
