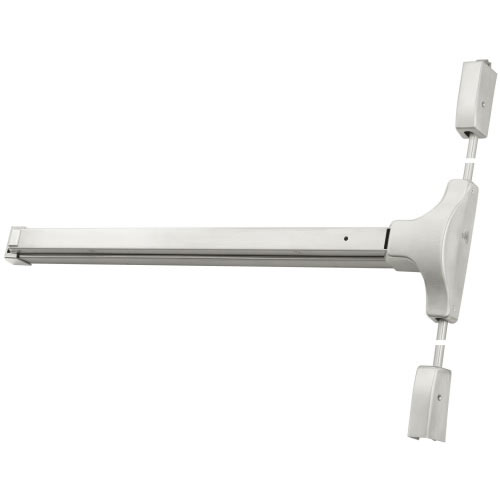

Accentra 2110 Surface Vertical Rod Exit Device for a 36" or 48" wide door x 84" Height, Exit Only
The 1210(F) is a surface vertical rod exit device is to be used with single doors or pairs of doors constructed of metal, wood or composite materials. The 2100(F) can be paired with a wide variety of trims to meet many applications.- When "F" is added to the 2110 part number it stands for a 3 hour Fire-Rated Exit Device
Applications:
- Single swing doors
- Pairs of doors (mullion required)
- Metal, wood or composite door materials
Certification/compliance:
- UL/cUL Listed:- FVSR/FVSR7 - Panic hardware- GXHX/GXHX7
- Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.)
- ZHEM - Latching hardware
- ZHLA - Windstorm rated assemblies- Certified A156.3 Type 7 and 8, Grade 1
Features:
- Designed for wide stile and flush doors
- Mechanisms made of heavily electroplated high-grade steel and non-ferrous materials provide sturdy construction and superior protection against corrosion
- Handed, specify hand (field reversible). Available less bottom rod (LBR option)
Specifications:
- Door Opening Width: -36 for 30" - 36" (76cm - 91cm) doors
- -48 for 42" - 48" (107cm - 122cm) doors
- Door Thickness: 1-3/4" (44mm) standard
- Minimum Stile Width: 4-1/2" (114mm)
- Door Opening Height: Standard door height 7' (213cm), with the device centerline at 39-15/16" (101cm) from floor.
- Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
- Latchbolt: Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching.
- Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.
- Vertical Rods: 1/2" (13mm) O.D. tubular brass, bronze or stainless steel with rod guides
- Strike: Top: Roller type 791. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings).
- Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts
- supplied standard for fire exit hardware.
- Trims: 121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim.
- Dogging: Hex key dogging supplied standard on panic devices
- Finishes: 689 Spray Aluminum or630 US32D - Stainless Steel
- Options: Cylinder dogging, shim kit #223, sex nuts and bolts, MicroShield®
- Warranty: 3-year limited
| General - US Finishes | 630 - Satin Stainless Steel/ US32D or 689 - Spray Alumimun |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | SVR Exit Device |
| Series | Accentra - 2100 Series |
| Fire Rated | Non-Rated |
