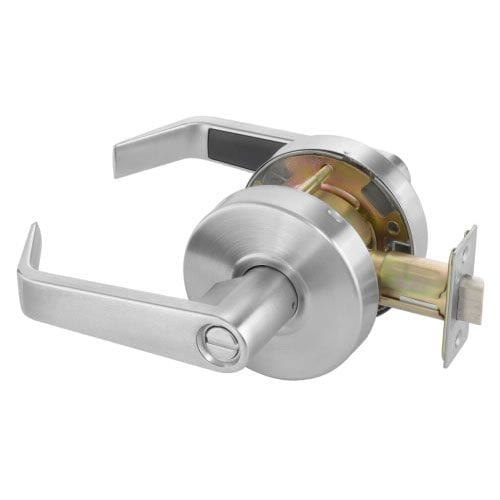

Accentra AU 4602LN Privacy Function, Cylindrical Latchset, Series 4000, Grade 2, Standard Duty, 2 3/4" Backset x 4 7/8" ASA Strike
Function Information:
- For lavatory or other privacy doors.
- Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
- Button automatically releases when inside lever is turned or door is closed.
- Emergency release in outside lever.
- Inside lever always active.
- ANSI F76B
Yale 4600LN Specifications:
| For Doors | Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm). |
| Backset | 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset. |
| Latchbolt | 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. |
| Through Bolts | 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer. |
| Strike | ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard. |
| Hand | Non-Handed and easily field reversible. |
| Cylinder | Brass, 6-pin, PARA (E1R) keyway. |
| Keys | Two, nickel silver |
| Warranty | 3 Year Limited Warranty |
| Certification Compliance | |
| ANSI | Certified A156.2 Series 4000, Grade 2. |
| UL-cUL | All locks listed for use on fire doors having a rating up to and including 3 hours. |
| ADA | Meets A117.1 Accessibility Code. |
| Hurricane Code | All Individual components of a total door opening are required to comply with each code. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - 4600 Series |
| Occupancy Indicator | No |
