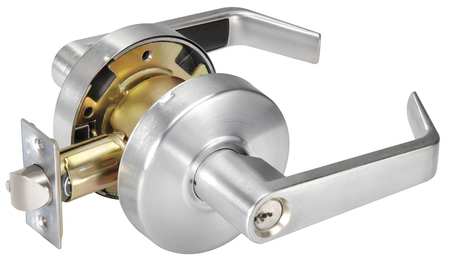

Accentra AU 4608LN Classroom Function, Cylindrical Lockset Series 4000, Grade 2 Standard Duty, 2 3/4" Backset x 4 7/8" ASA Strike
Function Information:
- For classroom or utility room doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked by key).
- Inside lever always active.
- Key releases outside lever.
- ANSI F84
Yale 4600LN Specifications:
| For Doors | Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm). |
| Backset | 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset. |
| Latchbolt | 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. |
| Through Bolts | 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer. |
| Strike | ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard. |
| Hand | Non-Handed and easily field reversible. |
| Cylinder | Brass, 6-pin, PARA (E1R) keyway. |
| Keys | Two, nickel silver |
| Warranty | 3 Year Limited Warranty |
| Certification Compliance | |
| ANSI | Certified A156.2 Series 4000, Grade 2. |
| UL-cUL | All locks listed for use on fire doors having a rating up to and including 3 hours. |
| ADA | Meets A117.1 Accessibility Code. |
| Hurricane Code | All Individual components of a total door opening are required to comply with each code. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway or Best/Falcon SFIC Format - Less Core |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - 4600 Series |
