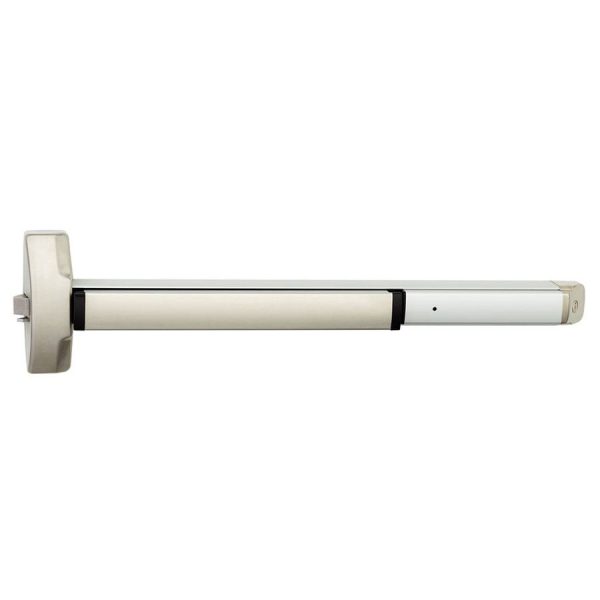

Accentra 6100ED Grade 1 Rim Exit Device | Exit Only
The Accentra 6100ED Rim Exit Device (formerly Yale) is a premium, architectural-grade life safety solution engineered for high-traffic commercial environments that demand smooth operation and modern aesthetics. As a Grade 1 Panic Rated device, the 6100ED is designed for the rigors of retail spaces, office buildings, and mixed-use facilities. This "Exit Only" rim device offers quiet, smooth egress and advanced vandal resistance, making it a top-tier choice for securing wide stile doors made of metal, wood, or composite materials.
The 6000 Series design features sleek, clean lines and a durable aluminum rail that blends seamlessly with contemporary interiors. Its 3/4" stainless steel deadlocking Pullman latchbolt ensures a positive, high-security engagement with the strike, while the non-handed design and standard hex key dogging provide maximum flexibility for facility managers and installers alike.
Premium Life Safety & Architectural Performance
- Quiet & Smooth Operation: The unique internal design reduces mechanical noise and ensures the touch bar operates with minimal effort for effortless egress.
- ANSI/BHMA Grade 1 Certified: Rigorously tested to exceed A156.3 Type 1 standards, guaranteeing long-term reliability in high-use institutional and commercial areas.
- Vandal Resistant Design: Features a heavy-duty angled end cap to protect the device against damage and eliminate catch points for carts or equipment.
- Universal Non-Handed Design: Simplifies ordering and job-site installation by fitting both left and right-hand door swings without modification.
- Standard Hex Key Dogging: Allows authorized staff to keep the push bar depressed and the latch retracted during business hours for convenient push/pull operation.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 6100ED (Exit Only) |
| Device Type | Rim Exit Device (Panic Rated) |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Door Widths | 24", 36", 42", or 48" |
| Minimum Stile Width | 4-1/2" (114mm) |
| Latchbolt | 3/4" (19mm) Deadlocking Stainless Steel Pullman-Type |
| Projection | 3-1/4" Active / 2-1/2" Dogged |
| Standard Strike | 757F |
| Finishes | 689 (Aluminum), 630 (Satin Stainless Steel), BSP (Black), & more |
| Warranty | 10-Year Limited Warranty |
Professional Installation & Structural Security
The Accentra 6100ED is built for high-strength, permanent mounting. To ensure the hardware maintains its integrity on hollow metal or wood doors that experience constant physical stress, we recommend the use of thru bolts for a secure "sandwich-style" attachment. While this specific configuration is "Exit Only," it is fully compatible with a wide variety of Accentra Exit Device Trim options for facilities requiring exterior keyed access.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or BSP - Black Suede Power Coat |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 6000 Series |
| Exit Device Type | Rim Exit Device |
| Exit Device Fire Rating | Non Rated Door |
