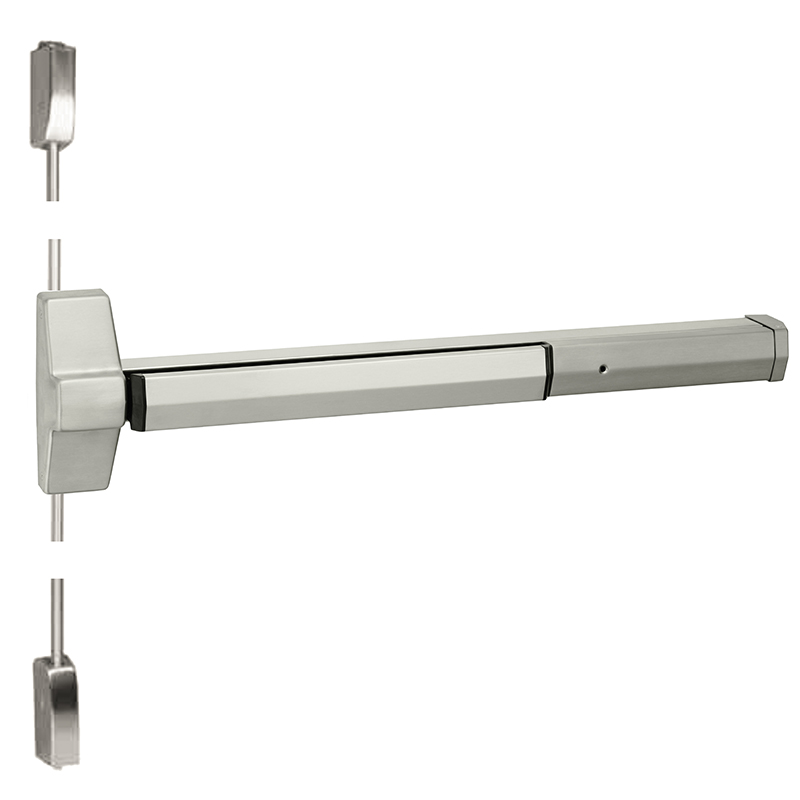

Accentra 7110 Grade 1 Surface Vertical Rod Exit Device | 36" x 84" Door | US32D Satin Stainless Steel
The Accentra 7110 Surface Vertical Rod (SVR) Exit Device (formerly Yale) is a high-performance, architectural-grade life safety solution engineered for maximum security on wide stile or flush doors. Finished in a premium US32D (630) Satin Stainless Steel, this Grade 1 SVR device provides superior two-point latching, securing the door at both the top and bottom of the frame. It is the premier choice for high-traffic commercial environments, including schools, hospitals, and office complexes where durability and ease of egress are paramount.
Designed for heavy-duty applications, the 7110 Series features a 3/4" throw Pullman-style top latch and a 5/8" bottom deadbolt that remains retracted during the door swing to prevent floor damage. This "Exit Only" device ensures a safe and reliable exit path while its robust construction serves as a significant deterrent against unauthorized entry.
Industrial-Strength Performance & Security
- Two-Point Secure Latching: Secures the door at both the header and the floor, providing exceptional resistance to forced entry compared to standard rim devices.
- ANSI/BHMA Grade 1 Certified: Rigorously tested to exceed A156.3 Type 2 standards, ensuring millions of cycles of reliable performance in high-frequency corridors.
- Satin Stainless Steel Finish (630/US32D): The high-grade stainless construction is not only aesthetically modern but offers the highest level of corrosion resistance for long-term use.
- Flexible Application: Ideal for pairs of doors, double egress openings, and doors made of metal, wood, or composite materials.
- Field Reversible Handing: While the device is handed, its design allows for field reversibility to accommodate unexpected job site changes (please specify LHR or RHR upon ordering).
- Standard Hex Key Dogging: Shipped with half-turn hex key dogging, allowing authorized personnel to manually retract the bolts and keep the push bar depressed during high-traffic hours.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 7110 (Exit Only) |
| Device Type | Surface Vertical Rod (SVR) |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Finish | US32D - Satin Stainless Steel (630) |
| Door Size Compatibility | 36" Width x 84" Height (3'0" x 7'0") |
| Minimum Stile Width | 4-1/2" (Standard Wide Stile) |
| Top Latchbolt | 3/4" Pullman-Type with Auto Deadlatching |
| Bottom Deadbolt | 5/8" Throw (Held Retracted During Swing) |
| Projection | 3-1/4" Active / 2-3/4" Dogged |
| Warranty | 5-Year Limited Warranty |
Professional Installation & Accessory Compatibility
The Accentra 7110 is designed for a permanent, high-strength mount using standard machine screws and wood door fasteners. For high-abuse settings or unreinforced doors, the use of thru bolts is highly recommended to achieve a secure "sandwich-style" attachment. While this model is an "Exit Only" configuration, it is fully compatible with Accentra Exit Device Trim, such as the 620F Series Escutcheon or 540F Series Rose Trim, for applications requiring exterior keyed access.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
| Door Handing | RHR or LHR |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | SVR Exit Device |
| Series | Accentra - 7000 Series |
| Door Opening Width | 36 Inches |
| Door Height | 7'0" Dr Ht |
| Exit Device Fire Rating | Non Rated Door |
