Accentra 7110F Surface Vertical Rod Exit Device 36 x 84 Exit Only - Fire Rated - Yale

Price:

$ 2,098.44
  2. Shop
  3. Accentra 7110F Surface Vertical Rod Exit Device 36 x 84 Exit Only - Fire Rated - Yale
Accentra 7110 Surface Vertical Rod Exit Device 36" x 84" - Yale
Accentra 7110 Surface Vertical Rod Exit Device 36" x 84" - Yale
$ 1,928.55
$ 1,928.55
Accentra 7170F90-LBR Surface Vertical Rod Exit Device less Bottom Rod - Fire Rated - 36 x 84 Door - Yale
Accentra 7170F90-LBR Surface Vertical Rod Exit Device less Bottom Rod - Fire Rated - 36 x 84 Door - Yale
$ 2,144.10
$ 2,144.10

Accentra 7110F Surface Vertical Rod Exit Device 36 x 84 Exit Only - Fire Rated - Yale

https://www.doorwaysplus.com/web/image/product.template/2229/image_1920?unique=6c92216

Accentra 7110F Surface Vertical Rod Exit Device 36 x 84 Exit Only US32D

$ 2,098.44 2098.44 USD $ 2,098.44

$ 2,098.44

Not Available For Sale

  • Door Handing
  • Brand
  • Exit Device Type
  • Series
  • Fire Rated
  • Door Opening Width
  • Door Opening Height
  • Finish with BHMA code

This combination does not exist.

Contact Us
Share :

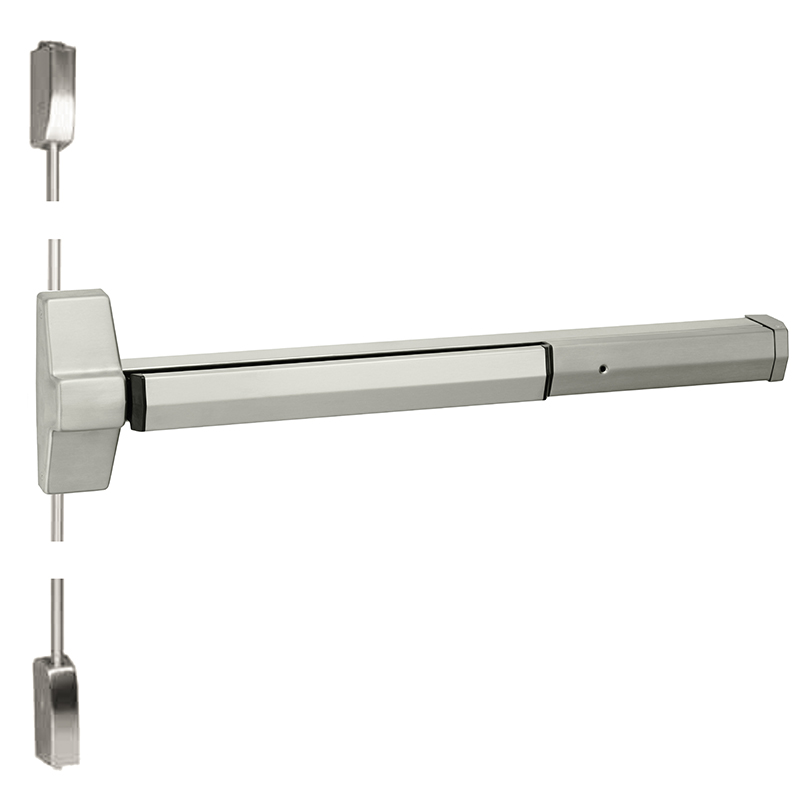

Accentra 7110F Surface Vertical Rod Exit Device 36" x 84" Door, Exit Only, Fire Rated, US32D Stainless Steel Finish - Fire Rated, US32D Stainless Steel Finish

The 7110(F) is a surface vertical rod exit device to be used on wide stile or flush doors up to 8' (fire) and 10' (panic) where two-point latching is desired.

- When "F" is added to the 7110 part number it stands for a 3 hour Fire-Rated Exit Device

UL/cUL Listed:

- FVSR/FVSR7 - Panic hardware

- GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.)

- ANSI/BHMA Certified: A156.3 Type 2, Grade 1

Features:

  • Designed for wide stile and flush doors
  • Handed. Specify hand (field reversible)
  • Bottom deadbolt for secure latching
  • Fully adjustable roller strike

Applications:

  • Pairs of doors
  • Double egress
  • Metal, wood or composite door materials

7110(F) Specifications:

Door Opening Width:
  • -36 for 30" - 36" (76cm - 91cm) doors
  • -48 for 36" - 48" (91cm - 122cm) doors
  • Door Opening Height: Standard door height 7' (213cm), with the device centerline at 39-15/16" (101cm) from floor.
  • Door Thickness: 1-3/4" (44mm) standard.
  • Minimum Stile Width: 4-1/2" (114mm)
  • Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt:
  • Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching
  • Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing
  • Vertical Rods: 1/2" O.D. tubular brass, bronze or stainless steel with rod guides
  • Strike: Top: Roller type 791. Bottom: Flush mounted 790.
  • Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
  • Trims: 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim.
  • Dogging: Hex key dogging supplied standard on panic devices
  • Warranty: 5-year limited


Door Handing RHR or LHR
Brand Accentra (formally Yale Security)
Exit Device Type SVR Exit Device
Series Accentra - 7000 Series
Fire Rated Fire Rated
Door Opening Width 36 Inches
Door Opening Height 84" - 6/8 to 7/0 Door Height
Finish with BHMA code 630 - US32D Satin Stainless
Yale 7100 Series Exit Device Catalog
Download
Yale 7110(F) Exit Device Installation Instructions
Download
