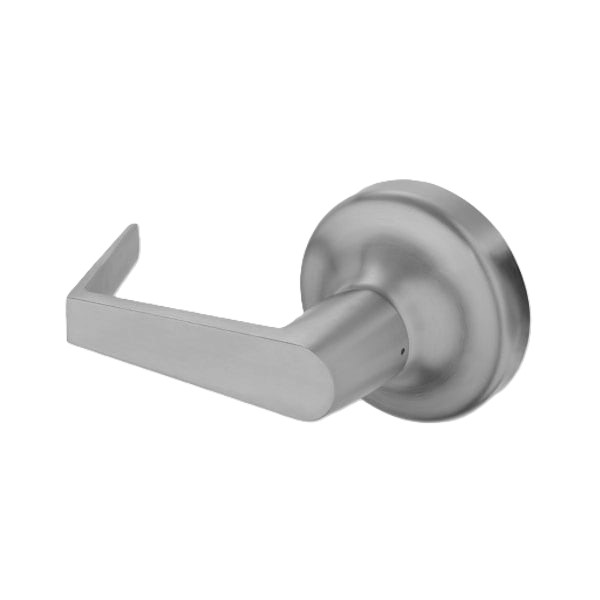

Accentra AU 448F Passage Function Exit Device Trim | Grade 1
The Accentra AU 448F Passage Function Exit Device Trim (formerly Yale) is a premium, high-traffic architectural solution designed for commercial openings where keyed security is not required. This Passage (ANSI 14) function features a lever that is always unlocked, allowing for free entry at all times while providing a durable, ergonomic grip for building occupants. It is the premier choice for internal office doors, shared supply rooms, and non-secured corridors in schools, hospitals, and industrial facilities.
As an ANSI/BHMA Grade 1 certified component, the 448F is engineered to withstand millions of cycles under heavy daily use. The Augusta (AU) lever style offers a clean, professional aesthetic that is fully ADA compliant. Designed specifically for convenience, the 440F Rose Trim fits seamlessly into standard 161 Prep (2-1/8" bore) door holes, making it an ideal choice for quick retrofits and new installations alike.
Superior Durability & Effortless Access
- Always-Unlocked Passage Function: Perfect for high-frequency transition areas where immediate access is required without the need for keys or locking mechanisms.
- Industrial Grade 1 Strength: Tested to exceed A156.3 standards, ensuring top-tier mechanical durability and long-term reliability in demanding institutional environments.
- Streamlined 161 Prep Retrofit: The 440F Rose design is optimized for doors with a standard 2-1/8" bore, allowing for a clean installation on stock doors without extensive modifications.
- Heavy-Duty Through-Bolted Mount: Attaches directly to the interior exit device through the door for a secure "sandwich" installation that prevents the trim from loosening or sagging over time.
- Ergonomic Augusta (AU) Lever: Provides a comfortable, easy-to-operate handle that meets all federal accessibility requirements for public buildings.
- High-Quality Architectural Finishes: Available in Satin Chrome (626), Dark Bronze (695), and Black Suede Powder (BSP) to match your existing hardware and décor.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | AU 448F |
| Function | Passage (ANSI 14) - Always Unlocked |
| Trim Series | 440F Rose Trim (161 Prep / 2-1/8" Bore) |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Lever Style | Augusta (AU) - ADA Compliant |
| Standard Door Thickness | 1-3/4" (44mm) |
| Compatibility | Accentra (Yale) 6100, 2100, and 1800 Series |
| Warranty | 2-Year Limited Warranty |
Installation & System Compatibility
The Accentra AU 448F Trim is specifically engineered for perfect synergy with Accentra (Yale) 6100, 2100, and 1800 Series Exit Devices. This trim is designed for standard 1-3/4" door thicknesses. For specialized applications involving doors up to 2-1/4" thick or shim-mounted devices, please request a quote as these configurations require extended lead times and specialized through-bolt fasteners.
| Finish with BHMA code | 689 - Painted, Aluminum or 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 695 - Painted, Stat Dark Bronze |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 1800 Series, Accentra - 2100 Series, Accentra - 6000 Series |
| Exit Device Trim Function | Passage |
| Trim Design | AU - Augusta Lever |
