Accentra AU 4601LN Grade 2 Passage Function Cylindrical Lever
Function Information:
- For doors that do not require locking.
- Either lever operates latchbolt at all times.
- ANSI F75

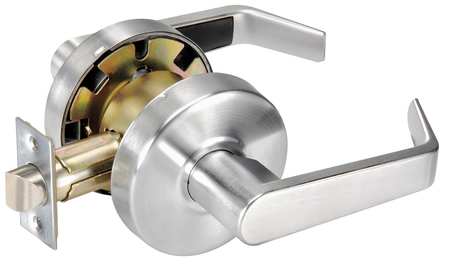

The Accentra AU 4601LN Passage Function Lever is a premier choice for high-traffic commercial environments that prioritize ease of access and durability. Formerly under the Yale brand, this Series 4000 Grade 2 Standard Duty cylindrical latchset is engineered for reliability in spaces where locking is not required, such as interior hallways, closets, or common areas.

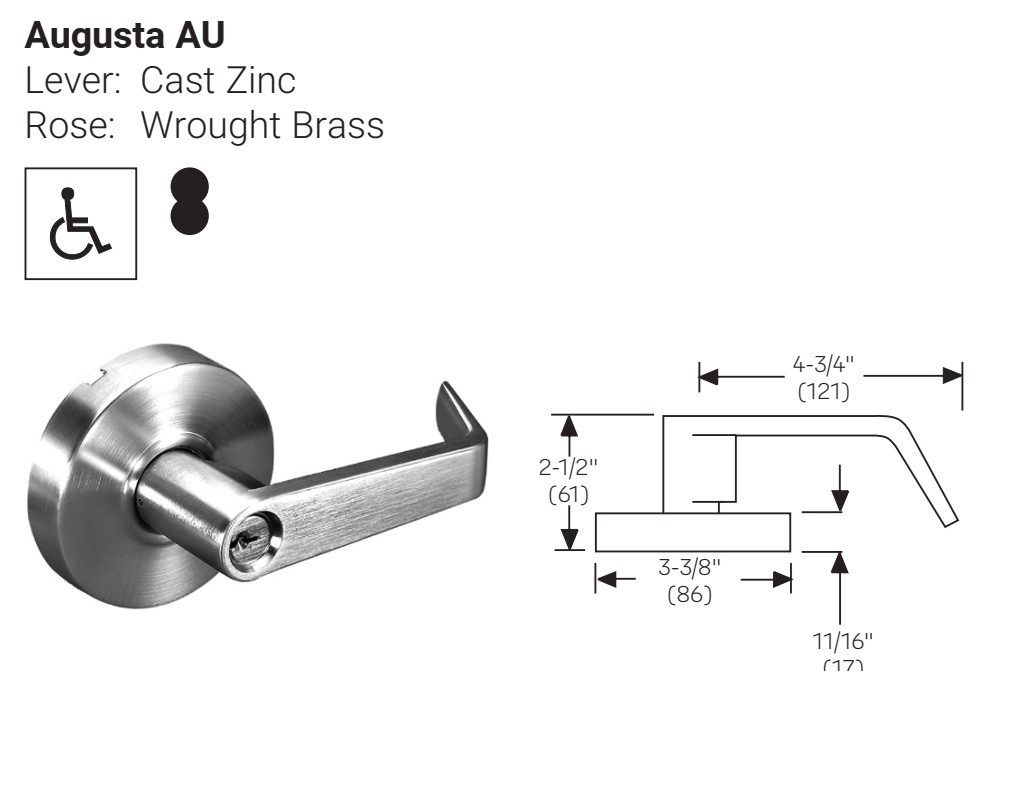

Designed with a sleek AU (Augusta) lever style, this hardware combines aesthetic appeal with heavy-duty performance. It features a non-handed design for easy field reversibility and meets strict ADA A117.1 Accessibility Codes, ensuring a user-friendly experience for all individuals.
Key Performance Features
- High-Traffic Durability: Certified ANSI/BHMA A156.2, Series 4000, Grade 2 for long-lasting operation in commercial settings.
- Fire-Rated Safety: UL-cUL listed for use on fire doors with ratings up to 3 hours, providing essential peace of mind.
- Flexible Installation: Includes 2 3/4" backset and 4 7/8" ASA strike as standard, fitting the most common commercial door preps.
- Passage Function (ANSI F75): Ideal for non-locking doors; both levers retract the latchbolt at all times for seamless movement.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (formerly Yale) |
| Model Number | AU 4601LN |
| Function | Passage (ANSI F75) |
| Grade | Grade 2 Standard Duty |
| Door Thickness | Adjustable 1-3/8" to 1-3/4" |
| Backset | 2-3/4" (70mm) Standard |
| Latchbolt | 1/2" Throw |
| Strike | ANSI 4-7/8" x 1-1/4" (ASA Strike) |
| Handing | Non-Handed (Reversible) |
| Compliance | ADA, UL/cUL (3 Hour Fire Rating) |
| Warranty | 3 Year Limited Warranty |
Installation & Compatibility
The Accentra 4600LN Series is designed for a straightforward setup. While these cylindrical lever locks are supplied with optional thru bolts, the installation of these thru bolts remains at the discretion of the installer based on the specific stability needs of the door.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - 4600 Series |
