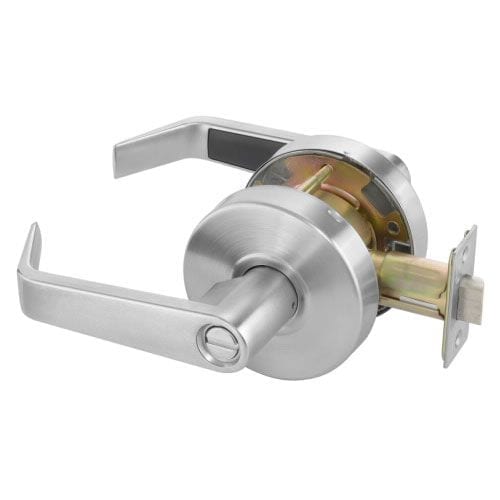

Accentra AU 4602LN Grade 2 Privacy Function Cylindrical Lever
Function Information:
- For lavatory or other privacy doors.
- Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
- Button automatically releases when inside lever is turned or door is closed.
- Emergency release in outside lever.
- Inside lever always active.
- ANSI F76B
The Accentra AU 4602LN Privacy Function Lever (formerly Yale) is a high-intent commercial hardware solution designed specifically for spaces requiring interior privacy, such as restrooms, changing rooms, and private offices. As part of the Series 4000 Grade 2 Standard Duty lineup, this cylindrical latchset balances robust security with the sleek, ergonomic AU (Augusta) lever design.
Engineered for durability and safety, the Accentra 4602LN features a reliable pushbutton locking mechanism on the interior and a critical emergency release on the exterior. This ensures that while privacy is maintained, the door can be accessed from the outside in the event of an emergency.
Key Product Highlights
- Privacy & Safety (ANSI F76B): Pushbutton locking on the interior lever; turning the inside lever or closing the door automatically releases the lock.
- Emergency Access: Includes a discrete emergency release on the exterior lever for safety compliance.
- Commercial Grade Durability: Certified ANSI/BHMA A156.2, Series 4000, Grade 2 for standard-duty commercial use.
- Fire-Rated Performance: UL-cUL listed for fire doors with a rating up to 3 hours.
- ADA Compliant: Designed to meet ADA A117.1 Accessibility Code, ensuring ease of use for all individuals.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | AU 4602LN |
| Function | Privacy / Lavatory (ANSI F76B) |

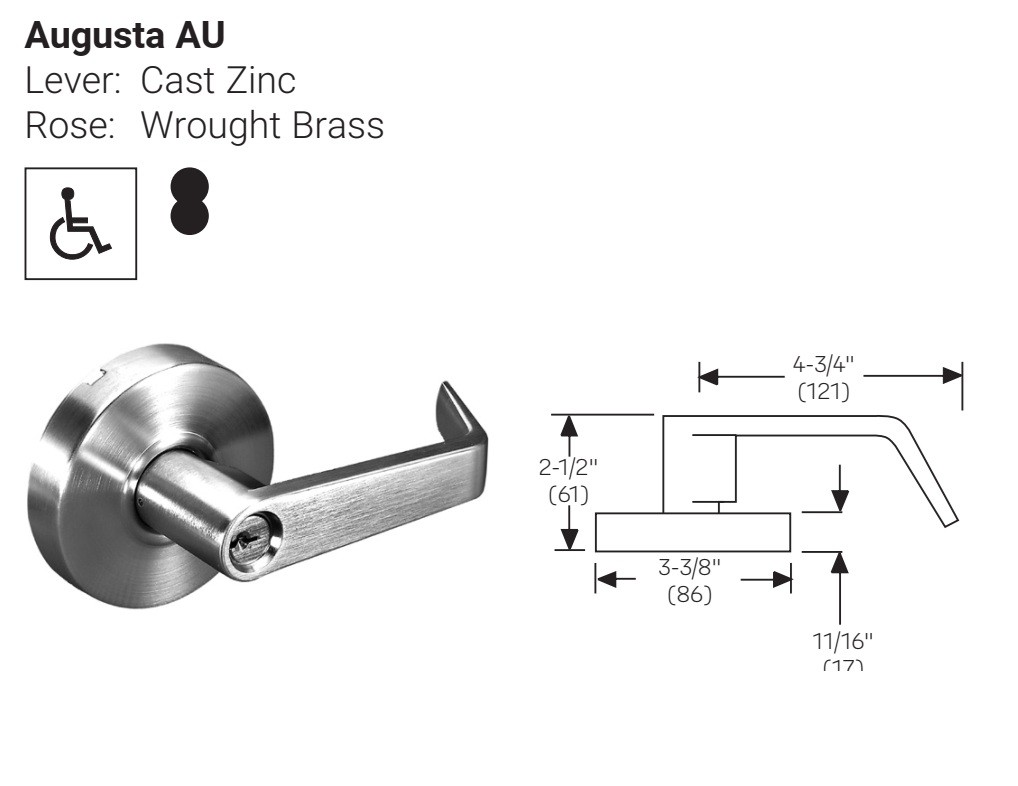

| Lever Style | Augusta (AU) |
| Grade | Grade 2 Standard Duty |
| Door Thickness | Adjustable 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw |
| Handing | Non-Handed / Field Reversible |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 3 Year Limited Warranty |
Professional Configuration
The Accentra AU 4602LN is built for versatile commercial applications. While these cylindrical lever locks are supplied with optional thru bolts, the installation of the thru bolts is at the discretion of the installer, allowing for a customized fit based on the specific stability requirements of the door.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - 4600 Series |
| Occupancy Indicator | No |
