Accentra AU 4607LN Grade 2 Office Entry Function Cylindrical Lock
Function Information:
- For entrance, general home or office doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked from inside).
- Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
- Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
- Latchbolt is operated by key in outside lever or by rotating inside lever.
- Inside lever always active.
- ANSI F109

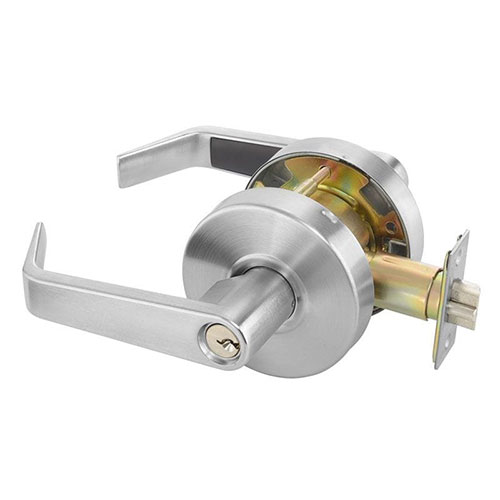

The Accentra AU 4607LN Office Entry Lockset (formerly Yale) is a high-intent security solution designed for versatile access control in professional environments. As a cornerstone of the Series 4000 Grade 2 Standard Duty line, this cylindrical lockset is engineered for entrance doors, private offices, and commercial interior spaces that require both security and flexibility.
Featuring the elegant and ergonomic AU (Augusta) lever design, this hardware provides a sophisticated look while delivering industrial performance. The Accentra 4607LN is specifically designed for convenience, allowing the exterior lever to be locked via an internal turn-button, while ensuring the interior lever is always active for safe, immediate egress.
Dynamic Security & Performance Features
- Office Entry Function (ANSI F109): Offers flexible locking options. The outside lever can be locked by pushing the inside turn-button or retained in a locked position by pushing and rotating the button 90°.
- Deadlocking Latchbolt: Equipped with a deadlocking latchbolt that provides enhanced resistance against unauthorized "shimming" or forced entry.
- Grade 2 Commercial Durability: Certified ANSI/BHMA A156.2, Series 4000, Grade 2 for long-lasting reliability in standard commercial applications.
- Fire-Rated Safety: UL-cUL listed for all fire doors with a rating up to 3 hours, essential for building code compliance.
- ADA Accessibility: Fully compliant with ADA A117.1 Accessibility Codes, ensuring the hardware is easy to operate for all staff and visitors.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | AU 4607LN |
| Function | Office / Entry (ANSI F109) |

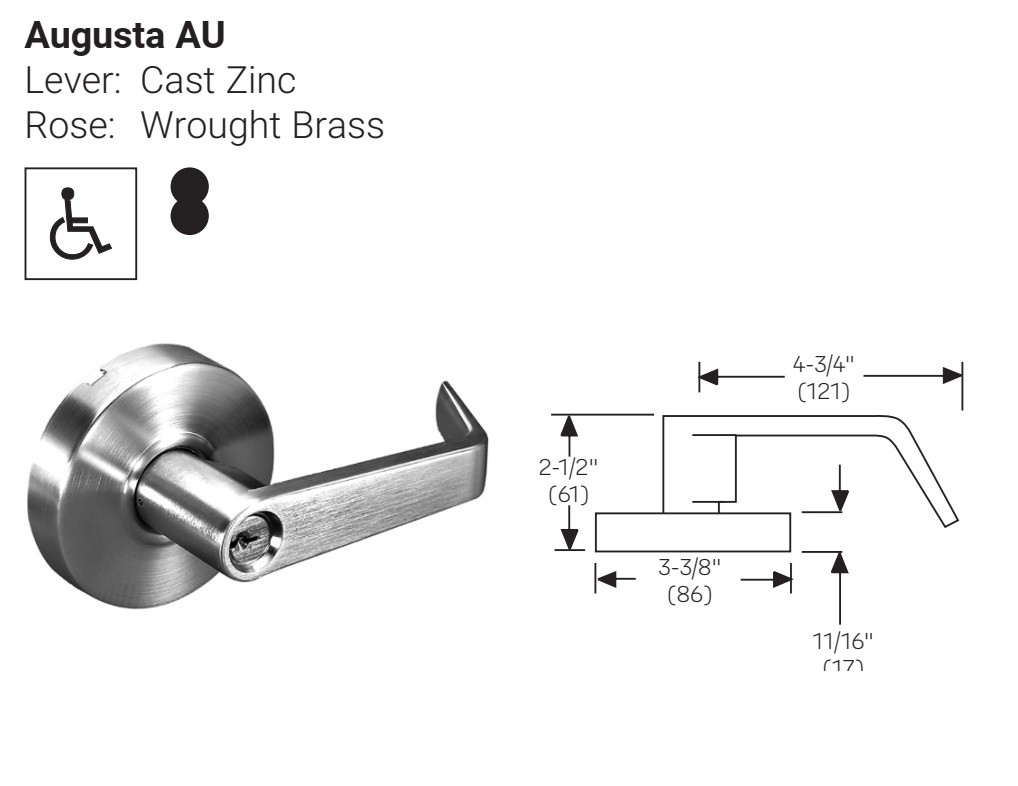

| Lever Style | Augusta (AU) |
| Grade | Grade 2 Standard Duty |
| Door Thickness | Adjustable 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw Deadlocking |
| Cylinder | Brass, 6-pin, PARA (E1R) Keyway |
| Handing | Non-Handed / Field Reversible |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 3 Year Limited Warranty |
Installation & Security Configuration
The Accentra AU 4607LN is designed for efficient professional installation. While these cylindrical lever locks are supplied with optional thru bolts, the final decision to use the thru bolts is at the discretion of the installer to ensure the perfect fit for the specific door stability and material requirements.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway or Best/Falcon SFIC Format - Less Core |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - 4600 Series |
