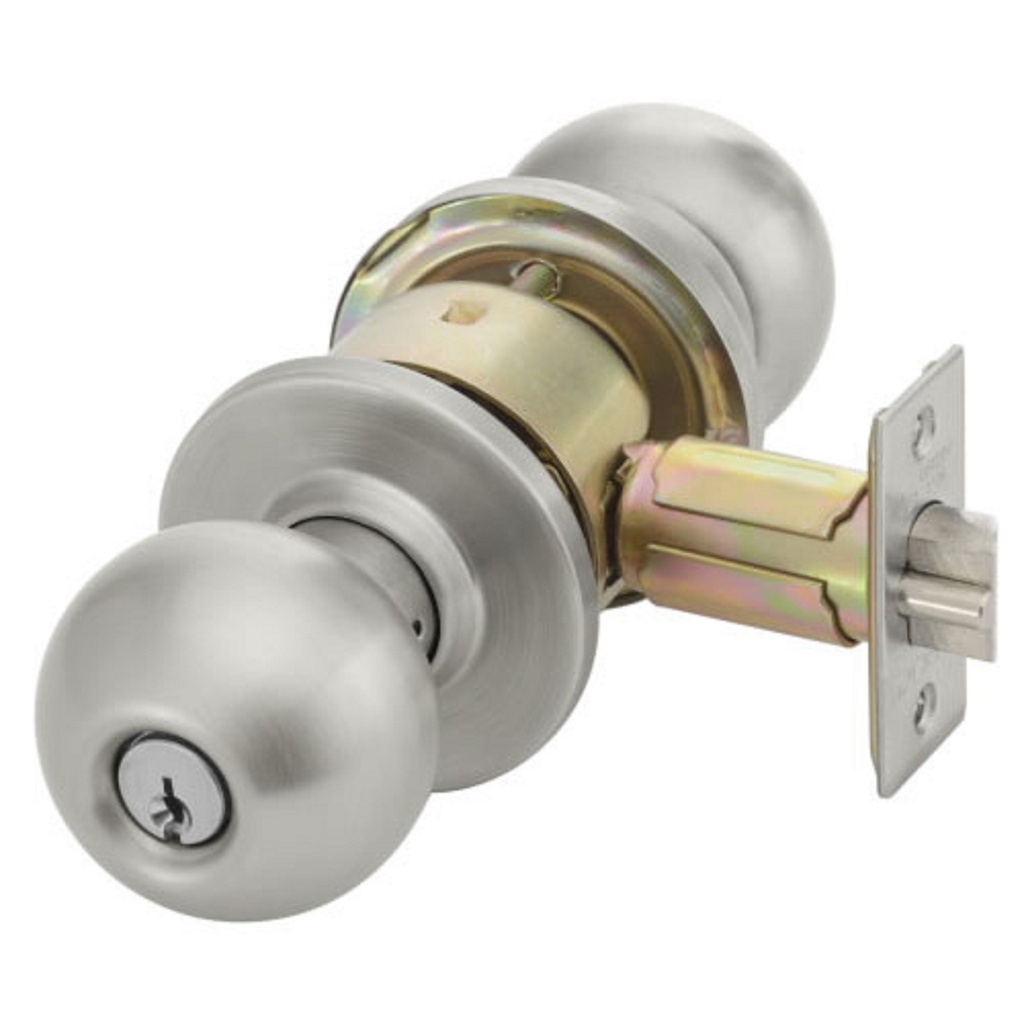

Accentra CA 4605YC Grade 2 Storeroom Knob Lockset, Grade 2 Standard Duty, 2 3/4" Backset x 4 7/8" ASA Strike
ASSA ABLOY ACCENTRA® 4600YC cylindrical locks are a superb choice for a range of commercial uses, delivering consistent quality and ease of installation at a budget-friendly price.
Function Information:
- For use on storeroom, utility, exit doors.
- Deadlocking latchbolt.
- Latchbolt operated by lever inside, key in outside lever.
- Outside lever always rigid.
- Inside lever always active.
- ANSI F86
Product Overview
Features
- Made of stainless steel or wrought brass
- Available in 6 functions and 5 finishes
- Priced affordably to fit any project budget
- UL/cUL fire rated up to 3-hours
Benefits
- Multiple cylinder formats including fixed core and SFIC
- ANSI/BHMA A156.2, Series 4000 Grade 2
- 3-year mechanical warranty
Specifications
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Small Format
- Cylinder Pins: 6 pin
- Door Thickness (Standard): 1 3/4"
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 2 3/4"
- Minimum Backset: 2 3/8"
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type: ANSI Curved Lip
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 3-year limited warranty
Certifications
- UL-cUL Fire-Rated Up to 3 Hours
- NFPA 80 Compliant
- ANSI/BHMA A156.2, Series 4000, Grade 2
- ANSI/BHMA A156.41
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 629 - US32 Polish Stainless |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Best/Falcon SFIC Format - Less Core |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F86 - Storeroom |

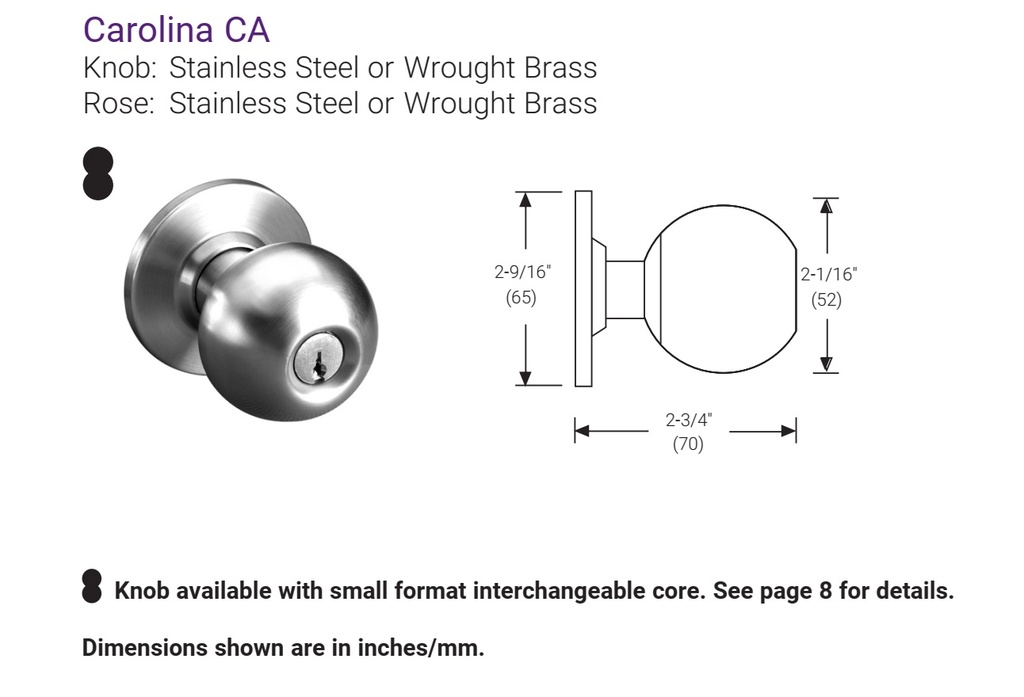

| Trim Design | CA - Carolina Knob |
| Series | Accentra - 4600 Series |
Accentra 4600YC Series Catalog.pdf
