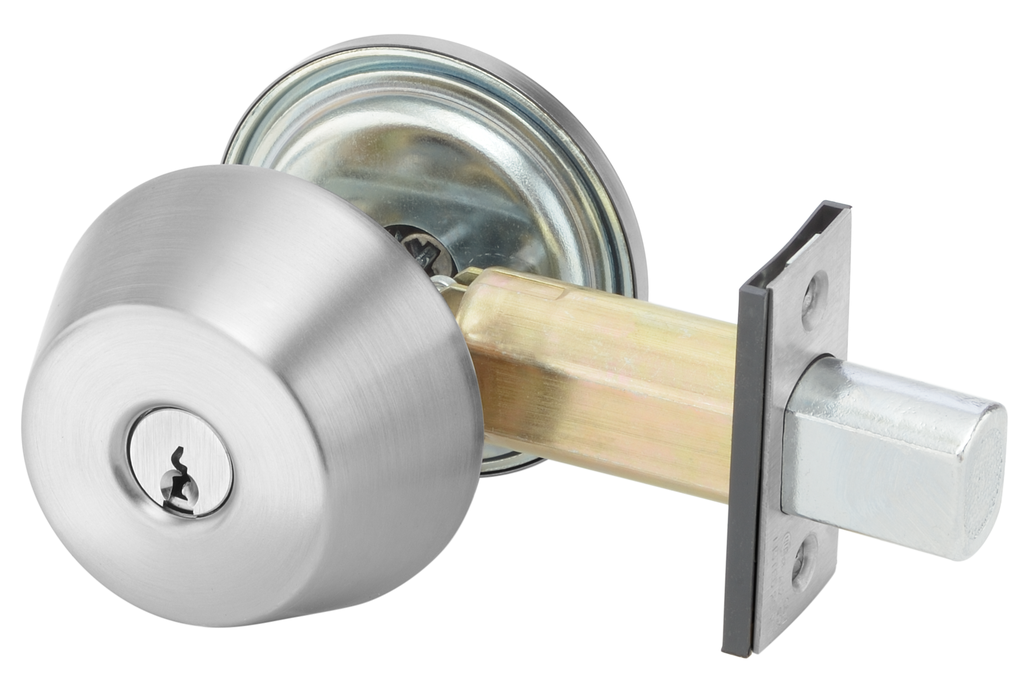

Yale D262 Deadbolt - Cylinder x Thumbturn - Classroom Function, 2-3/4" Backset, 626/US26D Satin Chrome
- Key outside operates deadbolt
- Thumbturn inside retracts deadbolt, but doesn't throw deadbolt
TECHNICAL INFORMATION:
| ANSI/BHMA | D200: Certified ANSI/BHMA A156.36 Grade 2 |
| Fire Listings | D series deadbolts, when used in conjunction with the primary latching device, are UL - cUL listed for use with Classified steel covered composite or hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes. Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. |
| Deadbolt | 1" (25mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert. |
| Fronts | 2-1/4" x 1" (57mm x 25mm) front and 1-1/8" (29mm) latch front filler supplied standard with each D series deadbolt. |
| Strikes | 2-3/4" x 1-1/8" (70mm x 29mm) metal and wood door strikes with strike reinforcement supplied standard. |
| Handing | Functions are non-handed and easily field reversible. |
| Backset | 2-3/4" (70mm) {STANDARD} or 2-3/8" (60mm) backset. |
| Door Thickness | Standard for 1-3/8" (35mm) to 1-3/4" (44mm) thick doors. |
| Installation | Can be installed on doors prepared to ANSI/BHMA A156.115 specifications using a simple bored-hole installation for square or beveled doors, opening in or out. |
| Finishes | 626 & 613BE Stock Finishes. For the following finishes please request a quote: 605, 606, 612, 613, 619, 625, BSP, WSP Cylinders provided in 626 or 606 finish only. |
| Warranty | 1 year mechanical |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway or Best/Falcon SFIC Format - Less Core |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| Deadlock Grade | Grade 2 - Std Dty |
| Deadbolt Function | Classroom w/Thumbturn |
| Cylinder Options | Single Cylinder |
| Backset | 2-3/4" Backset |
| Series | Accentra - D200 Series |
