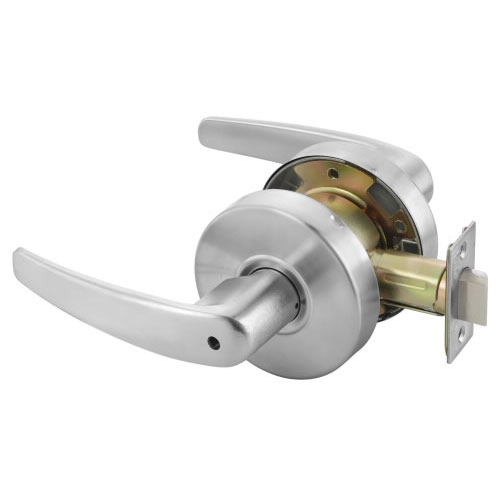

Accentra MO 4602LN Grade 2 Privacy Function Cylindrical Lever
Function Information:
- For lavatory or other privacy doors.
- Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
- Button automatically releases when inside lever is turned or door is closed.
- Emergency release in outside lever.
- Inside lever always active.
- ANSI F76B
The Accentra MO 4602LN Privacy Function Lever (formerly Yale) is a high-intent commercial solution engineered specifically for privacy-sensitive areas like restrooms, changing rooms, and private offices. As a centerpiece of the Series 4000 Grade 2 Standard Duty line, this cylindrical latchset delivers industrial-strength performance with the clean, modern MO (Monroe) lever design.
This hardware is designed to balance user privacy with essential safety. The internal pushbutton provides a secure "locked" state, while the integrated emergency release on the exterior lever ensures that authorized access is always possible if needed. The Accentra 4602LN is the go-to choice for facility managers seeking a reliable, code-compliant privacy lock that stands up to daily commercial use.
Key Product Highlights
- Privacy & Safety (ANSI F76B): Pushbutton locking on the interior; the lock automatically releases when the inside lever is turned or the door is closed for anti-lockout protection.
- Emergency Access: Features a discrete emergency release on the exterior lever, meeting critical safety and liability standards.
- Grade 2 Durability: Certified ANSI/BHMA A156.2, Series 4000, Grade 2 for consistent performance in standard-duty commercial environments.
- Fire-Rated Reliability: UL-cUL listed for fire doors with a rating up to 3 hours.
- ADA & Accessibility: Fully compliant with ADA A117.1 Accessibility Codes, ensuring easy operation for all users.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | MO 4602LN |
| Function | Privacy / Lavatory (ANSI F76B) |

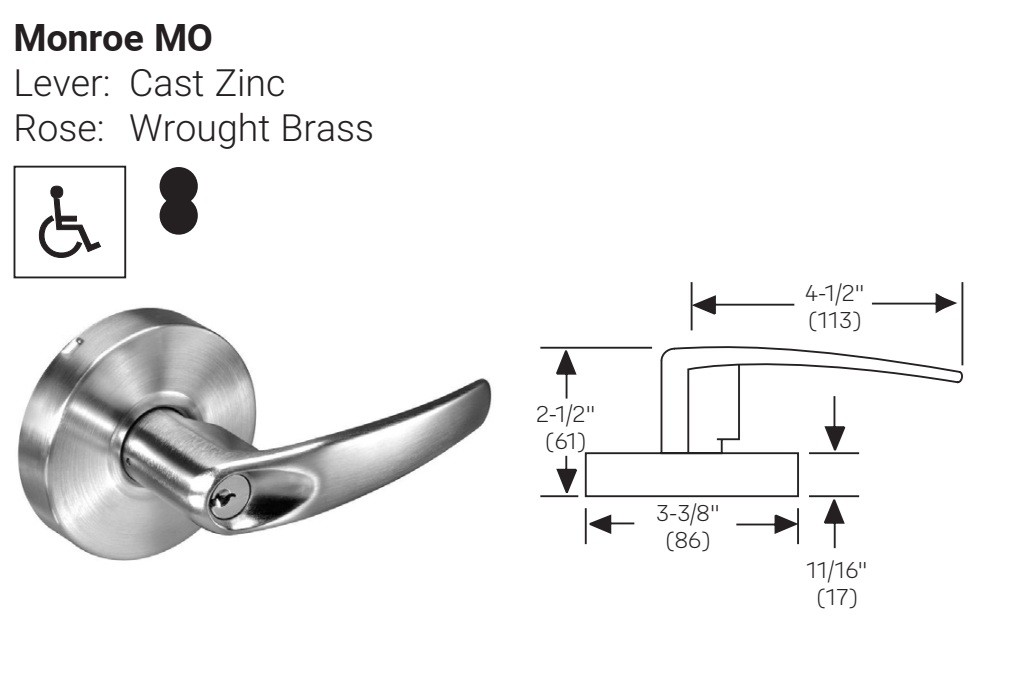

| Lever Style | Monroe (MO) |
| Grade | Grade 2 Standard Duty |
| Door Thickness | Adjustable 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw |
| Handing | Non-Handed / Field Reversible |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 3 Year Limited Warranty |
Versatile Installation
The Accentra MO 4602LN is engineered for straightforward setup in a variety of professional settings. While these cylindrical lever locks are supplied with optional thru bolts, the final installation of the thru bolts is at the discretion of the installer, providing flexibility based on the specific door construction and stability needs.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | MO - Monroe Lever |
| Series | Accentra - 4600 Series |
| Occupancy Indicator | No |
