Accentra Mortise Lockset 8801FL- PBR - Passage Function

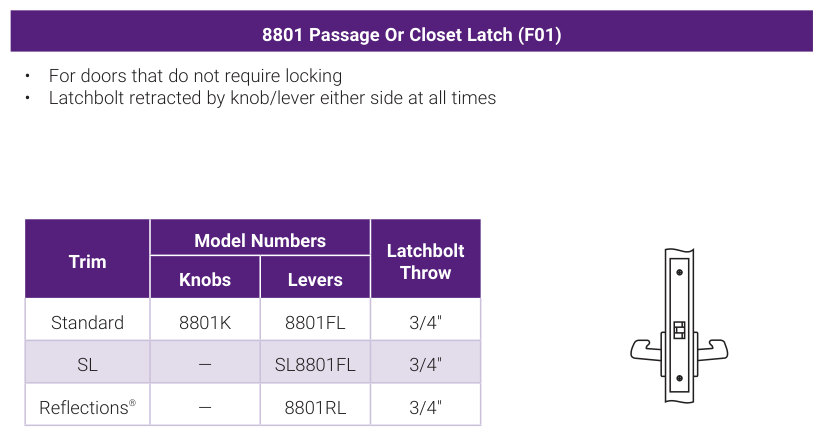

Function Info:

  • Trim from either side retracts latchbolt at all times
  • ANSI No. F01




Features:
• Heavy-duty trim for resistance against damage and vandalism
• Functions available for any industrial or commercial application
• Field adjustable lever handing and latchbolt
• ANSI/BHMA Certified Grade 1 for long-life and durability
• UL/cUL listed for 3 hour fire rated doors
• 10 year mechanical warranty
• Available in a variety of attractive trims and finishes

Yale 8800FL Specifications:

Armor Front:  8" x 1-1/4"
Backset:  2-3/4" only
Case:   Wrought steel, zinc dichromate
Deadbolt:   1" throw, cast stainless steel
Door Thickness:  1-3/4" standard
Handing:   Field reversible
Hubs:   3/8" solid steel, fine-blanked and heat treated for additional strength
Latchbolt:  3/4" throw, stainless steel one-piece anti-friction
Strike: 4-7/8" ASA strike standard



Finish with BHMA code 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal
Brand Accentra (formally Yale Security)
ANSI Mortise Lock Function F01 - Passage
Trim Design PBR
Series Accentra - 8800 Series
Yale 8800FL Mortise Lock Catalog
Download
Yale 8800FL Mortise Lock Installation Instructions
Download
Yale 8800FL Mortise Lock Template - Sectional Trims
Download
