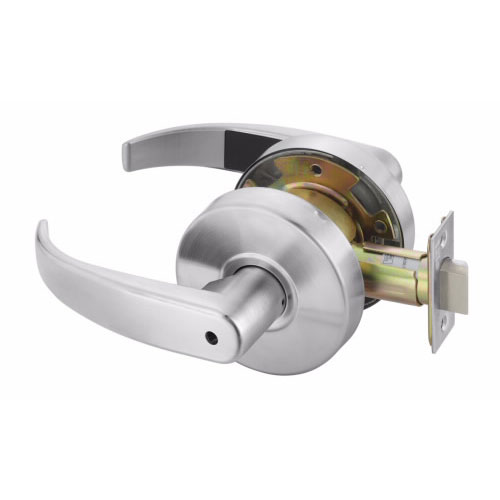

Accentra PB 4602LN Grade 2 Privacy Function Cylindrical Lever
Function Information:
- For lavatory or other privacy doors.
- Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
- Button automatically releases when inside lever is turned or door is closed.
- Emergency release in outside lever.
- Inside lever always active.
- ANSI F76B
The Accentra PB 4602LN Privacy Function Lever (formerly Yale) is a high-intent commercial hardware solution designed for interior openings where privacy is essential, such as restrooms, lactation rooms, and private offices. As part of the Series 4000 Grade 2 Standard Duty line, this cylindrical latchset delivers a perfect balance of reliability, modern aesthetics, and safety for light-to-medium traffic environments.
Featuring the comfortable and ergonomic PB (Pacific Beach) lever style, this unit is engineered for smooth operation and long-term durability. The Accentra 4602LN provides peace of mind with an integrated pushbutton lock on the interior and a critical emergency release on the exterior, ensuring user privacy without compromising safety access.
Performance & Safety Highlights
- Privacy Locking (ANSI F76B): Pushbutton locking on the interior lever inhibits the exterior lever. The lock automatically releases when the inside lever is turned or the door is closed to prevent accidental lockouts.
- Safety First: Includes a discrete emergency release on the exterior lever for authorized access during urgent situations.
- Commercial Certification: Certified ANSI/BHMA A156.2, Series 4000, Grade 2, ensuring it meets rigorous standards for commercial use.
- Fire-Rated Security: UL-cUL listed for all fire doors, including those with a rating up to 3 hours.
- ADA Accessibility: Fully compliant with ADA A117.1 Accessibility Codes, making it easy to operate for all facility users.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | PB 4602LN |
| Function | Privacy / Lavatory (ANSI F76B) |

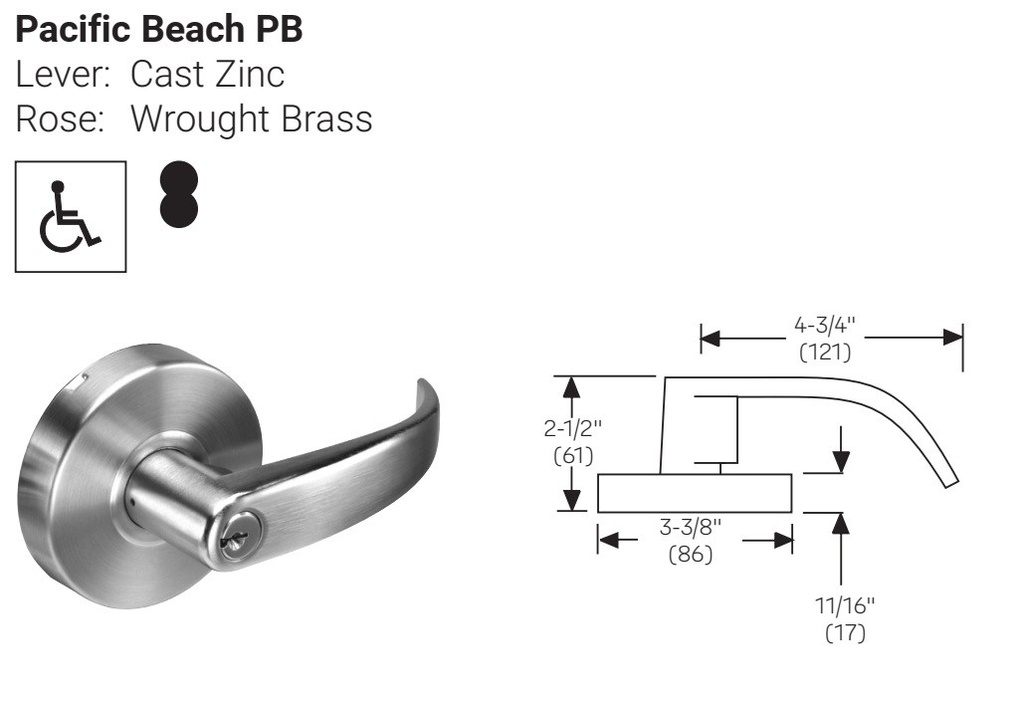

| Lever Style | Pacific Beach (PB) |
| Grade | Grade 2 Standard Duty |
| Door Thickness | Adjustable 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw |
| Handing | Non-Handed / Field Reversible |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 3 Year Limited Warranty |
Installation Flexibility
The Accentra PB 4602LN is designed for efficient installation in professional settings. While these cylindrical lever locks are supplied with optional thru bolts, the final use of the thru bolts is at the discretion of the installer, allowing the hardware to be tailored to the specific door preparation and required stability.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | PB - Pacific Beach |
| Series | Accentra - 4600 Series |
| Occupancy Indicator | No |
