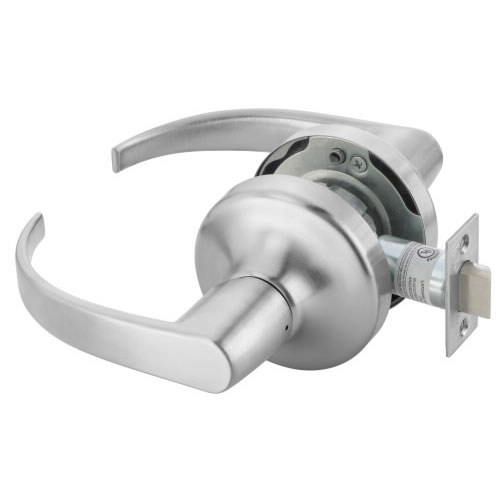

Accentra PB 4701LN Grade 1 Passage Function Cylindrical Lever
Function Information:
- For doors that do not require locking.
- Either lever operates latchbolt at all times.
- ANSI F75
The Accentra PB 4701LN Passage Function Lever (formerly Yale) is the industrial-strength standard for high-traffic commercial openings where locking is not required. As a Series 4700LN Grade 1 cylindrical latchset, this hardware is engineered to withstand the most demanding environments, including hospitals, universities, and high-occupancy office buildings. When your facility requires a non-locking solution that can endure millions of cycles, the PB 4701LN delivers unmatched durability.
Featuring the ergonomic and timeless PB (Pacific Beach) lever design, this latchset combines a classic aesthetic with heavy-duty performance. The Accentra 4700LN Series is constructed with reinforced rose support plates, ensuring a permanent and stable fit on heavy-duty commercial doors ranging from 1-3/4" to 2" thick.
Premium Commercial Features
- Grade 1 Heavy-Duty Performance: Certified ANSI/BHMA A156.2, Series 4000, Grade 1, representing the highest industry standard for structural integrity and cycle life.
- Superior Fire Safety: UL-cUL listed for all fire doors with a rating up to and including 3 hours, essential for life safety compliance in commercial corridors.
- Extended 7-Year Warranty: Backed by a 7 Year Limited Warranty, offering long-term peace of mind and significantly lower maintenance costs.
- Universal Handing: This unit is Non-Handed, allowing for effortless field reversibility to accommodate any door swing.
- ADA Compliant: Fully meets ADA A117.1 Accessibility Codes, providing easy, barrier-free operation for all facility users.
- Passage Function (ANSI F75): Perfect for interior hallways, breakrooms, and closets; both levers operate the latchbolt at all times for unobstructed access.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | PB 4701LN |
| Function | Passage / Hall & Closet (ANSI F75) |
| Series | 4700LN Series |
| Grade | Grade 1 Heavy-Duty |
| Door Thickness | Adjustable 1-3/4" (44mm) to 2" (51mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw |
| Lever Style | Pacific Beach (PB) |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 7 Year Limited Warranty |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | PB - Pacific Beach |
| Series | Accentra - 4700 Series |
