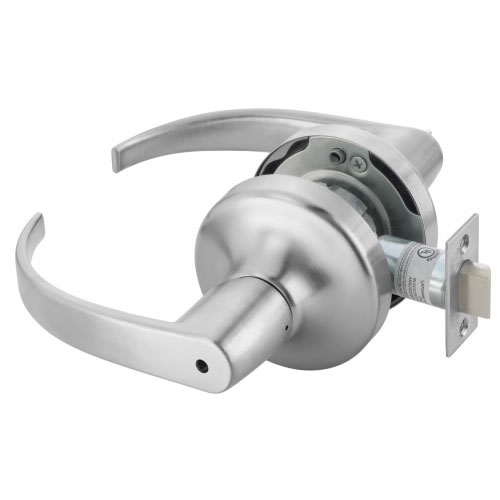

Accentra PB 4702LN Grade 1 Privacy Function Cylindrical Lever
Function Information:
- For lavatory or other privacy doors.
- Either lever operates latchbolt unless outside lever is locked by pushbutton inside.*
- Button automatically releases when inside lever is turned or door is closed.
- Emergency key inserted and turned in hole in outside lever will unlock door from outside. (Emergency key furnished with lockset.)
- Inside lever always active.
- * Lever Handles are Free Wheeling in Locked Position
- ANSI F76A
The Accentra PB 4702LN Privacy Function Lever (formerly Yale) is a high-intent, heavy-duty commercial hardware solution designed for maximum durability in high-traffic restrooms, dressing rooms, and private suites. As a Series 4700LN Grade 1 cylindrical latchset, this hardware is engineered to withstand the rigorous demands of hospitals, universities, and government facilities.
Featuring the timeless and ergonomic PB (Pacific Beach) lever design, this lockset includes the advanced Free Wheeling lever mechanism. When the door is locked from the inside, the outside lever rotates freely without retracting the latch, protecting the internal components from vandalism and excessive force.
Advanced Privacy & Security Features
- Privacy Locking (ANSI F76A): A simple interior pushbutton locks the exterior lever. The lock automatically releases when the interior lever is turned or the door is closed, ensuring user convenience and preventing accidental lockouts.
- Safety Emergency Access: For security-critical applications, an emergency key (included) can be used from the exterior to unlock the door in urgent situations.
- Free Wheeling Mechanism: All locking functions in the 4700LN Series feature a lever that rotates freely when locked, preventing damage to the internal chassis from forced entry attempts.
- Industrial Grade 1 Strength: Certified ANSI/BHMA A156.2, Series 4000, Grade 1, providing the highest level of structural integrity and cycle life in the industry.
- Code Compliance: UL-cUL listed for fire doors up to 3 hours and fully compliant with ADA A117.1 Accessibility Codes for barrier-free operation.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | PB 4702LN |
| Function | Privacy / Lavatory (ANSI F76A) |
| Series | 4700LN Series |
| Grade | Grade 1 Heavy-Duty |
| Door Thickness | Adjustable 1-3/4" (44mm) to 2" (51mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw |

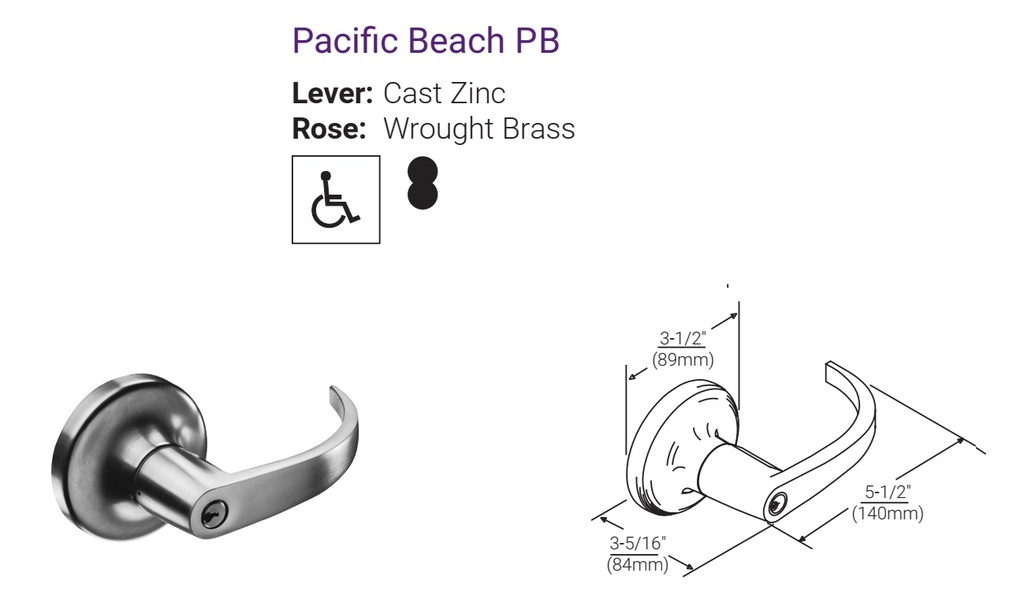

| Lever Style | Pacific Beach (PB) |
| Handing | Non-Handed / Field Reversible |
| Warranty | 7 Year Limited Warranty |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | PB - Pacific Beach |
| Series | Accentra - 4700 Series |
| Occupancy Indicator | No |
