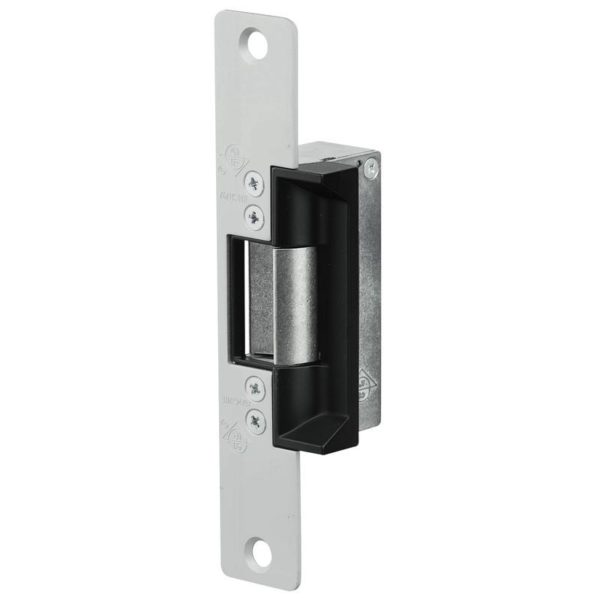

Adams Rite 7130 Electric Strike, 6-7/8 Inch Height Face Plate, For Aluminum Storefront Doors and Frames
7130 Electric Strike with 6-7/8” height faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in aluminum jambs and stiles.
Function:
Remote electrical control of any narrow stile or hollow metal door equipped with an Adams Rite Series 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Large faceplate is designed to cover strike opening when converting from an MS pivoted-bolt deadlock to a deadlatch. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8”. Replaces discontinued Adams Rite 7030, 7530, 7830 Electric Strikes.
Specifications:
- Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
- UL 1034 burglary-resistant listed, BP2092
- ANSI/BHMA Number E09321, Grade 1
Case: Approximately 1” x 3-3/8” x 1-5/8” deep.
Strike Lip: Basic 7130 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.
Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
Faceplate: Faceplate for 7130 measures 1-7/16” x 6-7/8”. Available in 628 Clear Aluminum or 313 Dark Bronze Anodized finishes
Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.
Current Draw/Amps:
| VOLTS | AC INTERMITTENT | DC CONTINUOUS |
| 12 | 1.42 | 0.33 |
| 24 | 0.74 | 0.17 |
Standard Package: Individually boxed with mounting screws, mounting clips, and adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8”.
Options:
- Available with two monitoring signal switches which sense whether latch bolt is in strike and whether strike jaw is blocked. Choice of voltage in AC and DC for intermittent or continuous duty. Specify assembled for either fail-secure (locked when unpowered) or fail-safe (locked when powered) operation, but can be field converted to the other mode. Model 7110 and 7111 are identical except for their faceplate length.
- 4603 Rectifier – converts AC to DC, installs in low voltage line between transformer and strike. Rated 2 amps (200 PIV)
- 4605 Transformer – converts 120VAC to 12/24 VAC. Rated 40 Volt-amp output assures plenty of power for strike release. Patented mounting bracket fits in knockout hole of standard junction boxes.
- 4606 Transformer – Plug-in version for standard wall outlet.
Warranty: 3 Year Limited Warranty for defect of manufacture
| Finish with BHMA code | 628 - Clear Anodized Aluminum or 313 - Dark Bronze Anodized |
| Fail Safe/Fail Secure | Fail Safe or Fail Secure |
| Voltage | 12 VDC or 24 VDC or 24 VAC Intermittent |
| Brand | Adams Rite |
| Electric Strike Lock Type Use | Cylindrical - 5/8" Throw |
| Fire Rated | Non-Rated |
| Series | Adams Rite - 7100 Series |
