Babcock Davis BIW-K Insulated Fire-Rated Access Door, Drywall Bead Flange
Babcock Davis BIW-K Insulated Fire-Rated Access Door, Drywall Bead Flange, Knurled Knob/Key Latch
Lead Time: 5-8 Business Days (Standard)
*** Some Sizes are available to ship within 1-3 days - Call ahead to verify lead time ***

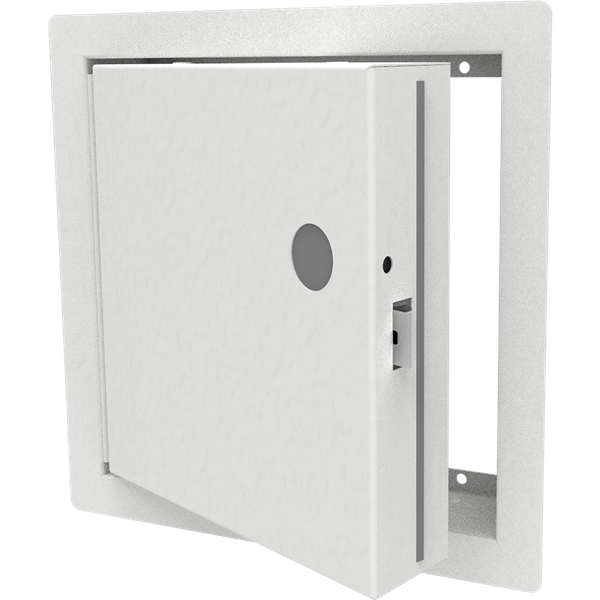

Babcock Davis BIW-K Fire-Rated Insulated Access Panel x Drywall Bead x WPC
The Babcock Davis BIW-K Fire-Rated Insulated Access Panel is the premier solution for projects requiring both strict fire code compliance and a seamless, high-end aesthetic. Specifically designed for drywall installations, this model features a drywall bead flange that allows you to tape and mud directly to the edge, making the frame virtually invisible once finished.
Engineered with 2 inches of fire-rated mineral fiber insulation (R-8), the BIW-K is designed to significantly reduce heat transfer. To ensure maximum safety, the door is self-closing and self-latching, maintaining the integrity of your fire barrier automatically. For convenience during maintenance, an internal knurled knob allows for easy operation from the inside.
Key Features & Specifications
- Dual-Certified Fire Rating: UL Listed "B" Label for 1.5 hours in vertical walls and Warnock-Hersey listed for 3 hours in horizontal ceilings (up to 24" x 36").
- Concealed Finish: The drywall bead flange provides a clean, "mud-in" look, perfect for modern offices, hospitals, and luxury commercial spaces.
- Rugged Construction: Features a 16-gauge steel frame and a 20-gauge steel door with a concealed pin hinge for a sleek profile and long-term durability.
- Thermal Protection: The 2-inch insulated core provides an R-8 value, preventing temperature rise on the non-fire side of the door.
- Durable Finish: Arrives with a White Powder Coat finish that is both corrosion-resistant and ready for paint to match your interior.
Important Sizing & Ratings
- Multi-Application Rating: Sizes from 8" x 8" to 24" x 36" are fire-rated for both walls and ceilings.
- Wall-Only Rating: Larger sizes from 24" x 48" to 36" x 48" are fire-rated for wall installations only.
| Visual Size | 8" x 8" or 10" x 10" or 12" x 12" or 12" x 18" or 12" x 24" or 14" x 14" or 16" x 16" or 18" x 18" or 18" x 24" or 20" x 30" or 22" x 22" or 22" x 30" or 22" x 36" or 24" x 24" or 24" x 30" or 24" x 36" or 30" x 30" or 32" x 32" |
| Brand | Babcock-Davis |
| Flange Type | Drywall Bead |
| Fire Rated | Fire Rated |
