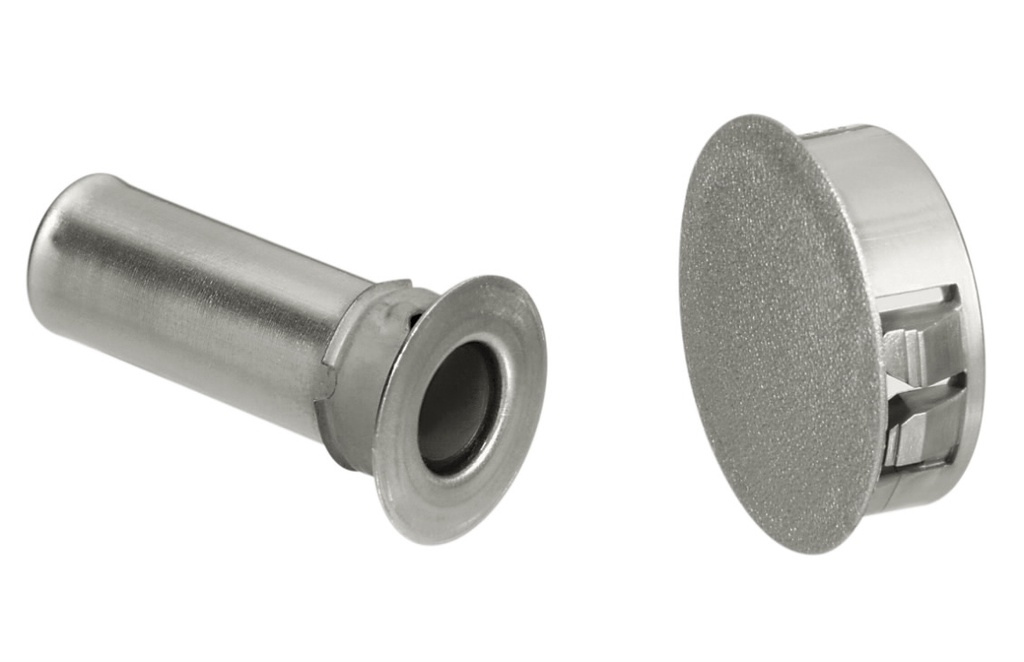

Rockwood 18BFB Bottom Fire Bolt for Fire Rated Metal Doors

Features:

  • Eliminates the bottom automatic flush bolt and dust proof strike.

  • When door is subjected to 230˚F the plug and gray plastic cover will melt allowing the bolt to project, locking the leaves together.

  • UL Listed only when used with automatic top bolt.

  • UL Listed up to and including 3 hour opening (A Label) in conjunction with the 2840 or 2805 top Bolt for metal doors up to 4ft x 8ft

  • The BFB will project during a fire. Do not cover door edge with any edge mounted door hardware (astragals)



Material & Finish:                Stainless Steel - US32D

Bolt:                                       13⁄16" x 1-9⁄16"
Plug:                                      1-7⁄32" dia.


Brand Rockwood
Bolt Type Fire Bolt (Thermal Pin)
Door Type Metal Door
