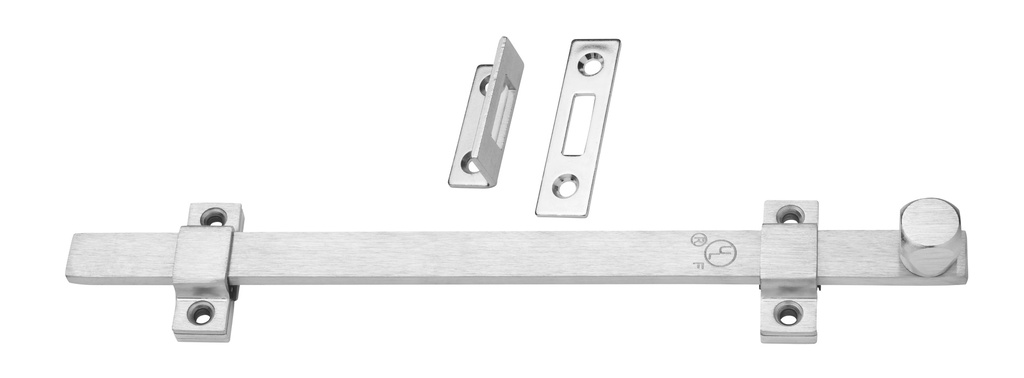

Rockwood 580-12" Heavy-Duty Surface Bolt | US26D Satin Chrome
The Rockwood 580-12-US26D is a professional-grade security solution designed for high-traffic commercial, industrial, and institutional environments. Measuring 12 inches in length, this robust surface-mounted bolt provides an extra layer of visible security and structural reinforcement for double doors. It is UL listed for 3-hour fire-rated doors, making it a primary choice for ensuring life-safety compliance in schools, hospitals, and retail office spaces.
Heavy-Duty Security & Fire-Rated Compliance
- 3-Hour Fire Rating: UL listed for use on the inactive leaf of labeled fire door pairs. This ensures the door remains securely latched during emergency events, meeting strict municipal building codes.
- ANSI/BHMA Certified: Built to meet ANSI A156.16: L04161 standards, guaranteeing that the hardware can withstand the rigors of high-frequency commercial use.
- Extended 12" Reach: The 12-inch length offers superior leverage and accessibility, making it easier for personnel to operate on taller commercial doors compared to standard 8-inch bolts.
- Superior Bolt Throw: Features a 1-1/8" bolt throw, ensuring deep engagement into the strike plate to resist forced entry and door warping.
- Thru Bolts available: Rockwood SP1019
Versatile Installation & Architectural Finish
- Satin Chrome (US26D/626): Finished in a durable, corrosion-resistant Satin Chrome that seamlessly matches standard commercial door hardware and office aesthetics.
- Dual Strike Kit: Includes both a universal top strike (surface mount) and a mortise bottom strike (floor mount), providing the flexibility to secure the bolt into the header or the threshold.
- Complete Fastener Pack: Furnished with both #10 x 1-1/4" sheet metal screws and 10-24 x 1" machine screws, allowing for secure mounting on both hollow metal and solid wood doors.
Technical Specifications
- Model: 580-12
- Bolt Length: 12"
- Bolt Throw: 1-1/8"
- Material: Steel plated US26D (Satin Chrome / 626)
- Bolt Dimensions: 1/4" thick x 3/4" wide
- ANSI Code: L04161
- Available by Quote: US10, US10B (Oil Rubbed Bronze), US10BE, US3 (Bright Brass).
| Brand | Rockwood |
| General - US Finishes | US26D - Satin Chrome |
| Length | 12 Inch |
| Bolt Type | Surface Bolt - Industrial |
| Fire Rated | Fire Rated |
| Door Type | Wood Door, Metal Door |
Rockwood 580 Series Template T-580 0715.pdf
Download
