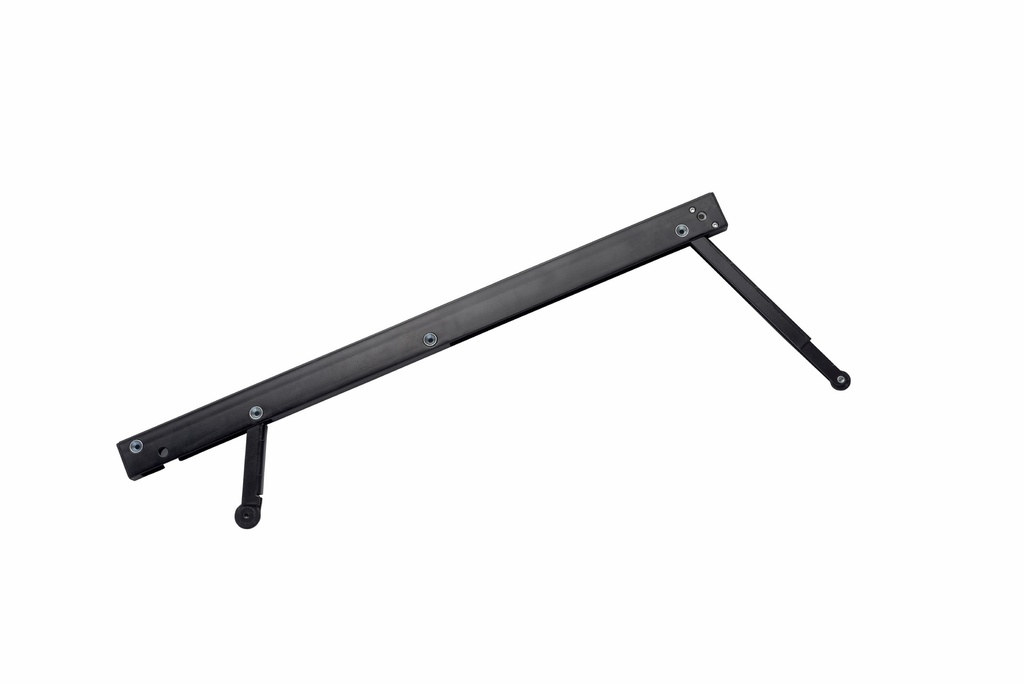

Rockwood 1700 Soffit Mounted Door Coordinator | Universal Fire Door Sequencer

The Rockwood 1700 Door Coordinator is a heavy-duty steel sequencer designed to manage the closing cycle of a pair of doors. By ensuring the inactive leaf closes before the active leaf, it guarantees a secure latch every time. This soffit-mounted (stop-mounted) unit is specifically engineered for ease of installation, as it does not require mounting brackets for stop-mounted hardware, saving time and reducing project costs.

Professional Grade Sequencing & Safety

• Universal Non-Handed Design: The 1700 is non-handed, making it compatible with any door swing and simplifying the ordering process for large facility projects.

• Stop-Mounted Efficiency: Designed to mount directly into the soffit or stop of the frame. Because it is soffit-mounted, you eliminate the need for extra brackets when using standard door closers or strikes.

• Fire Safety Compliance: Essential for fire-rated openings, this coordinator ensures that doors close in the correct order to maintain the integrity of the fire seal. It meets ANSI A156.3 Type 21B architectural standards.

• Wide Application Range: Built for pairs of doors up to 8 feet wide, providing robust control for oversized commercial entrances in schools, hospitals, and office complexes.

• Heavy-Duty Steel Construction: Fabricated from high-strength steel for long-term reliability in high-traffic environments where consistent closing is a safety requirement.


Technical Specifications

• Model: Rockwood 1700
• Material: Steel
• Overall Size: 1-1/2" x 25-9/16" x 3/4"
• Mounting: Soffit / Stop Mounted (No brackets required)

• ANSI/BHMA: A156.3: Type 21B

• Fasteners: Includes 4 ea. #10 x 2" FH WS (Wood) and 4 ea. 10-24 x 2" FH MS (Machine)

• Compatibility: Not for use with exposed vertical rod panic devices.

​
