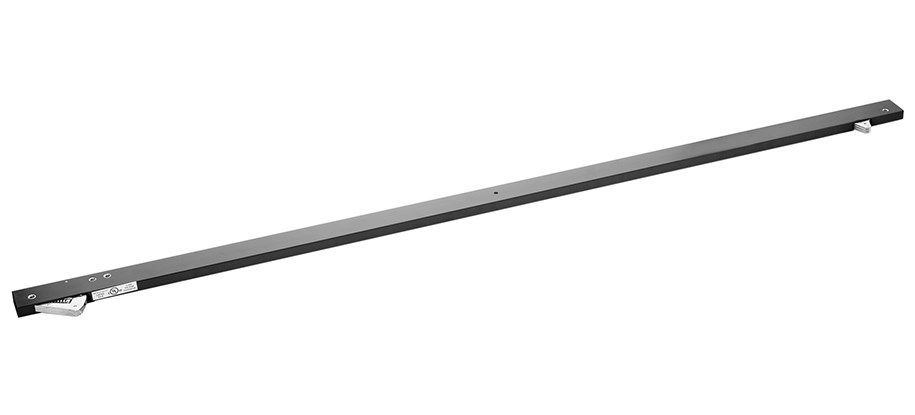

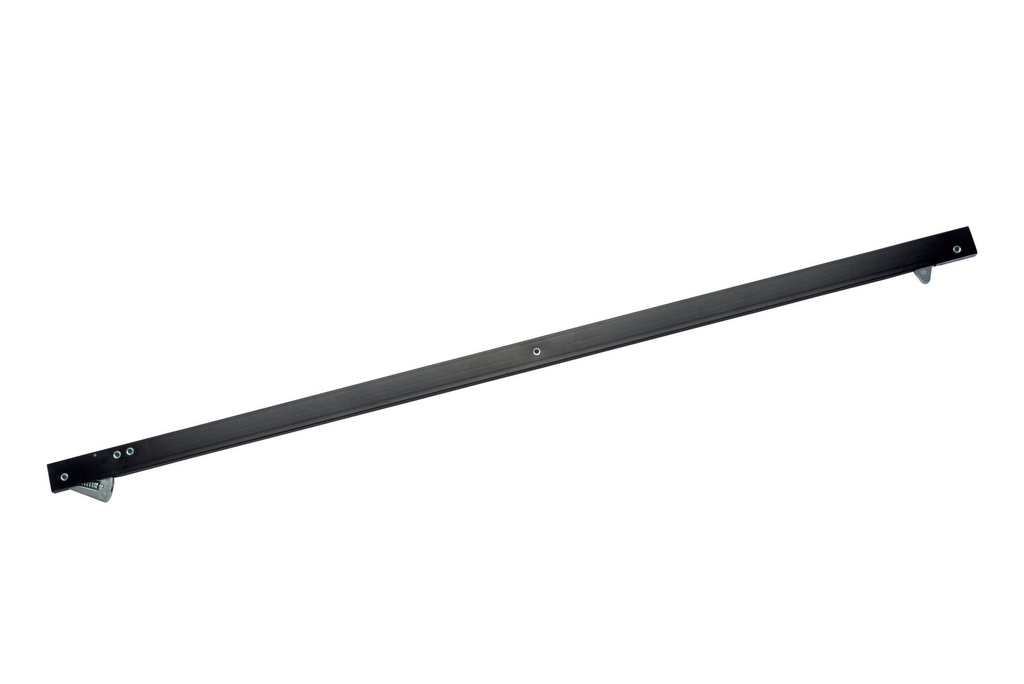

Rockwood 2660 Soffit Mounted Door Coordinator | 60" Openings

The Rockwood 2660 Door Coordinator is a critical life-safety component designed for pairs of doors where one leaf must close before the other (typically an active leaf with an astragal). Standing at a 52-inch length and specifically engineered for 60-inch door openings, this soffit-mounted device ensures the inactive leaf is fully seated before the active leaf closes. Crafted from heavy-duty steel with a Black Prime Coat, it provides a sleek, low-profile look that can be painted to match your door frame.

Precision Fire Safety & Door Protection

• Automatic Sequence Control: Ensures that the inactive door leaf closes first, allowing the active leaf to latch securely. This is vital for maintaining the integrity of fire-rated openings and acoustic seals.
• Integrated Override Protection: Features a built-in safety mechanism that prevents damage to the coordinator or the doors if the active leaf is forced to close before the inactive leaf.

• Non-Handed Universal Design: The non-handed configuration allows for installation on any door swing, providing maximum flexibility on the job site.

• ANSI/BHMA Certified: Meets ANSI A156.3 Type 21 standards, guaranteeing the durability and reliability required for institutional and high-traffic commercial use.


Technical Specifications

• Model: Rockwood 2660
• Application: 60" Wide Jamb Openings
• Material: Heavy-Duty Steel
• Finish: Black Prime Coat (BPC)
• Dimensions: 5/8" W x 1-5/8" H x 52" L

• Fasteners: Includes 7 ea. #12-24 x 1-1/4" Type C tapping screws.

​
