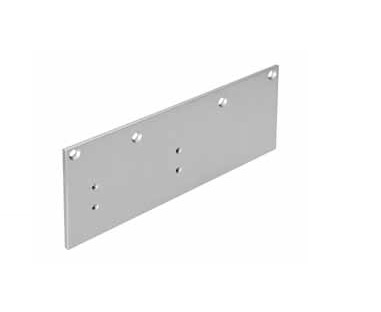

Corbin Russwin Drop Plate for DC3000 or DC6000 Closers, 597F58
Drop Plate
- Permits parallel arm mounting on door when top rail is too narrow to install closer in the regular manner.
- Minimum 2-5/8" (67mm) top rail required. Jamb mounted where there is insufficient ceiling clearance for standard mounting or where it is necessary to allow vertical arm clearance for overhead door holders or frame gasketing.
- Intended for use on the DC3210, DC6210, DC6410, DC6240, & DC6440 Closers
| General - US Finishes | 689 - Spray Alumimun or 690 - Spray Dark Bronze or 691 - Light Bronze or 696 - Spray Gold |
| Brand | Corbin Russwin |
| Series | Corbin-Russwin - DC3000 Series, Corbin-Russwin - DC6000 Series |
| Closer Part Type | Brackets & Feet |
Corbin Russwin DC3000 Catalog.pdf
Download
Corbin Russwin DC3000 Series DC3210 Surface Door Closers Parallel Arm Mounting 597F58 Plate Template.pdf
Download
Corbin Russwin DC3000 Series DC3210 Surface Door Closers with A4 & A5 Heavy Duty Backstop Non-Hold & Hold Open Arms Parallel Arm Mounting 597F58 Plate Template.pdf
Download
Corbin Russwin DC6000 Catalog.pdf
Download
Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with A2, A4, A5 Arms Heavy Duty Parallel Arm Mounting 597F58 Plate Template.pdf
Download
Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with or without A1 Arm Parallel Arm Mounting 597F58 Plate Template.pdf
Download
