Corbin Russwin 867F20 CLX Latch Assembly – 2-3/4" Backset, Plain Square Corner
The Corbin Russwin 867F20 is a genuine OEM CLX latch assembly designed for the Corbin Russwin CLX3300 Series cylindrical lock. Featuring a 2-3/4 inch (2-3/4" BS) backset and a plain square corner faceplate, this replacement latch provides a precise, factory-specification fit for CLX3300 Series cylindrical locksets. Whether you are performing a scheduled maintenance replacement or restoring a worn assembly, the 867F20 delivers the exacting tolerances and build quality that facilities managers, locksmiths, and door hardware professionals expect from Corbin Russwin.
Institutional Grade Features & Benefits
- Genuine OEM Corbin Russwin Part: Manufactured to original factory specifications, ensuring seamless compatibility and reliable operation within the CLX3300 Series cylindrical lock platform.
- 2-3/4 Inch Backset: The industry-standard 2-3/4" backset measurement accommodates the most common door preparations found in commercial and institutional construction, minimizing retrofit adjustments.
- Plain Square Corner Faceplate: The flat, square-edge faceplate profile fits standard square-corner strike preparations without requiring chiseling or modification to the door edge.
- Precise Drop-In Replacement: Engineered as a direct replacement latch for the CLX3300 Series, reducing installation time and eliminating compatibility guesswork for service technicians.
- Commercial-Grade Construction: Built to withstand the high-cycle demands of commercial, institutional, and multifamily applications where door hardware reliability is critical.
- Restores Smooth Latch Operation: Replaces worn or damaged latch bolts to return the cylindrical lockset to full, code-compliant operation — maintaining proper door function and security performance.

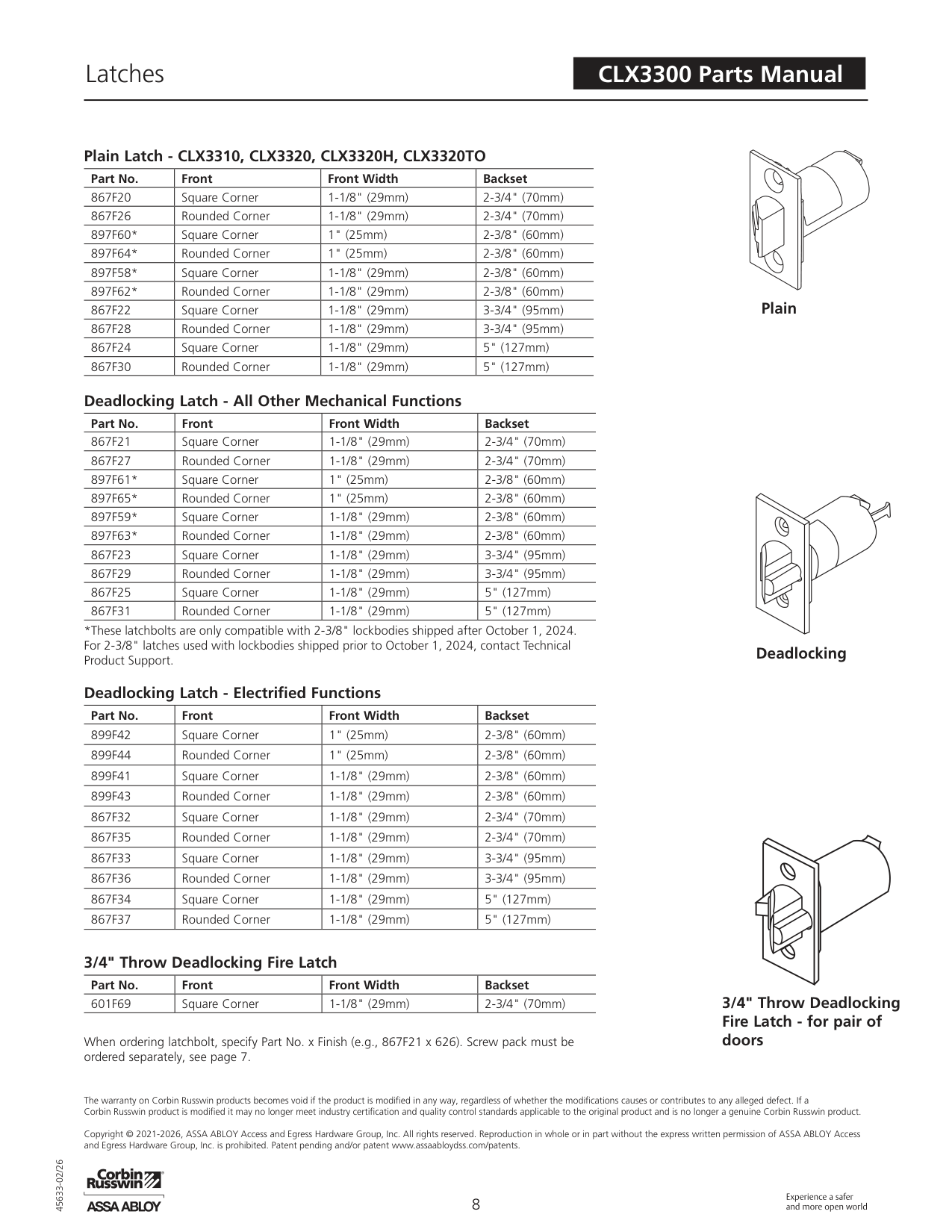

Exploded Diagram
Technical Details
| Feature | Details |
|---|---|
| Brand | Corbin Russwin |
| Model / Part Number | 867F20 |
| Part Type | Latch Assembly |
| Product Class | Cylindrical Lock Component |
| Backset | 2-3/4 Inch (2-3/4" BS) |
| Corner Type | Plain Square Corner |
| Series / Trim Compatibility | Corbin Russwin CLX3300 Series |
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Corbin Russwin |
| Series | Corbin-Russwin - CLX3300 Series |
| Part Type | Latch Assembly |
