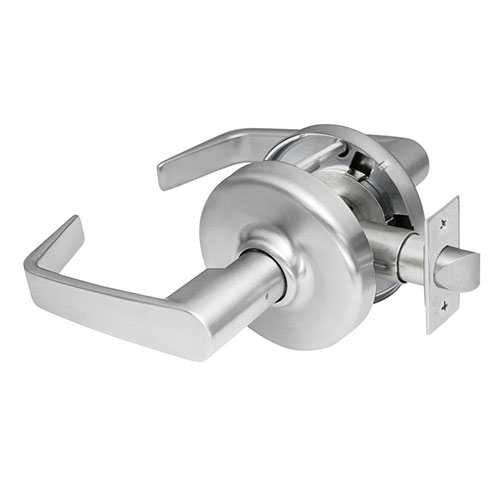

Corbin Russwin CL3810 NZD Passage Function Cylindrical Latchset



All Locks and Latches include 2-3/4" Backset and 4 7/8" ASA Strike


Corbin Russwin CL3800 Specifications:

For Doors

Standard 1-3/8" to 1-3/4" (35 to 45mm); factory set for 1-3/4" doors.

Backset

2-3/4" (70mm) standard. Optional: 2-3/8"(60mm), 3-3/4" (95mm)and 5" (127mm)

Lock Chassis

Steel, zinc dichromated for corrosion resistance.

Front

Brass, Bronze or Stainless Steel. 2-1/4" x 1-1/8" (29mm) standard for 2-3/4" (70mm), 3-3/4" (95mm) and 5" (127mm) backset. 2-1/4" x 1" (57 x 25mm) standard for 2-3/8" (60mm) backset. Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Latchbolt

1/2" (13mm) throw latch with universal “floating” front to fit both flat and beveled doors. 2-1/4" x 1-1/8" (57 x 29mm) square corner front for 2-3/4" (70mm) backset standard

Auxiliary Latchbolt

Deadlocking latchbolt prevents manipulation when door is closed.

Strike

ANSI curved lip strike standard, 4-7/8" x 1-1/4" x 1-1/4" (124 x 32 x 32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available.

Hand

Non-Handed

Cylinder

Brass, 6-pin, L4 keyway, 0-bitted standard.

Keys

Two, nickel silver

Warranty

7 Year Limited Warranty





Certification Compliance

ANSI

Certified A156.2 Series 4000, Grade 2.

UL-cUL

All locks listed for “A” label single doors. Letter “F” and UL symbol on latch front indicate listing.

Federal

Meets FF-H-106C.

ADA

Meets A117.1 Accessibility Code.

California Code

All levers with returns comply; levers return to within 1/2" of door face.



Finish with BHMA code 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome or WSP - White Suede Powder Coat
Brand Corbin Russwin
ANSI Cyl Lock Function F75 - Passage
Trim Design NZD
Series Corbin-Russwin - CL3800 Series
Corbin Russwin CL3800 Installation Instructions
Download
Corbin Russwin CL3800 Parts Manual
Download
Corbin Russwin CL3800 Series Catalog
Download
Corbin Russwin CL3800 Template
Download
