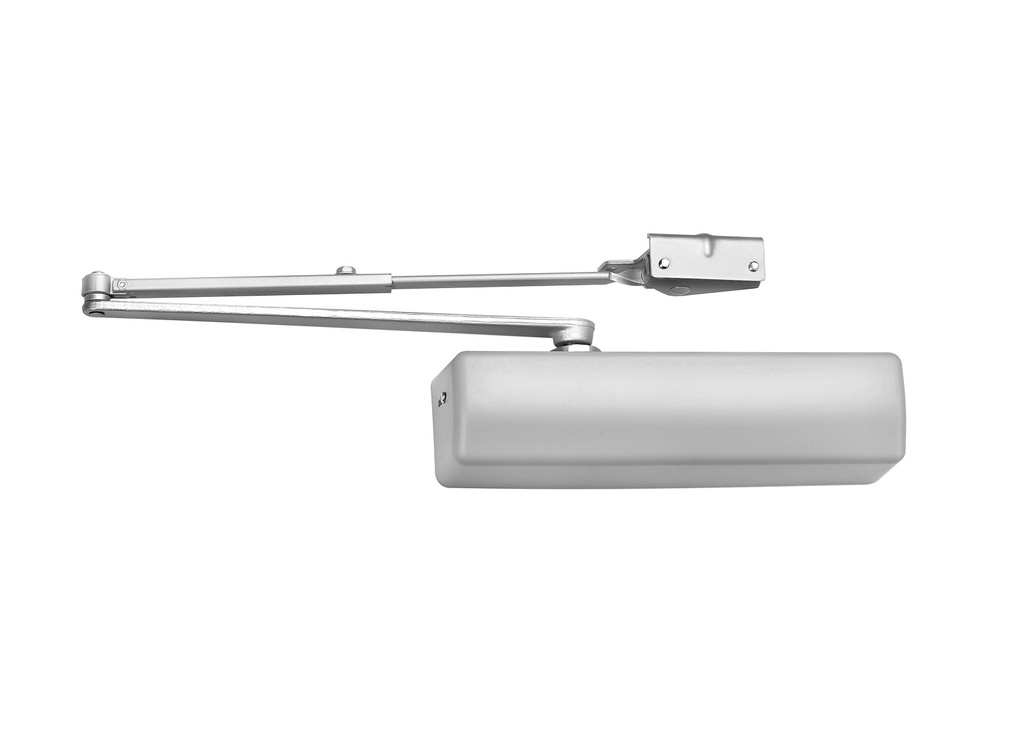

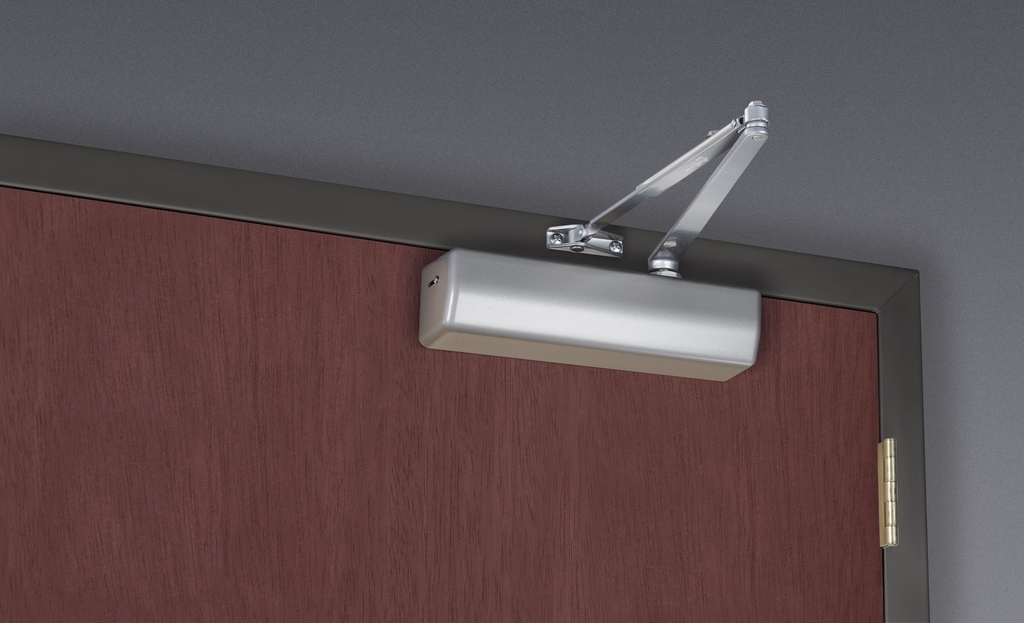

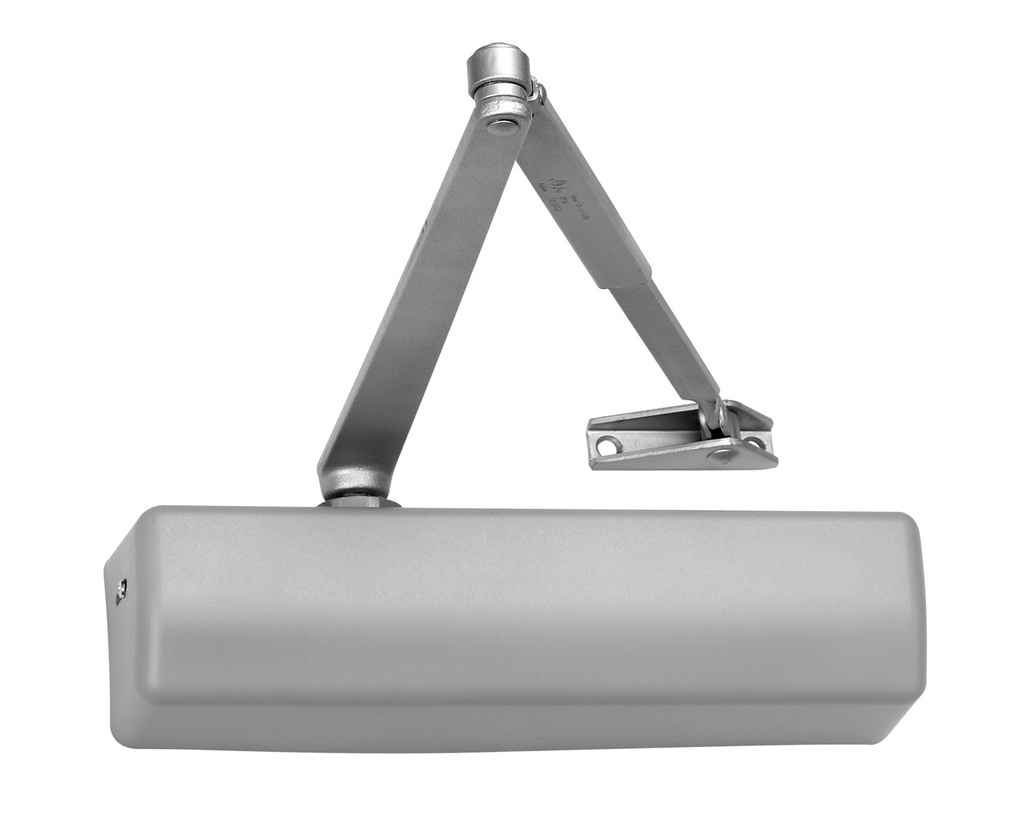

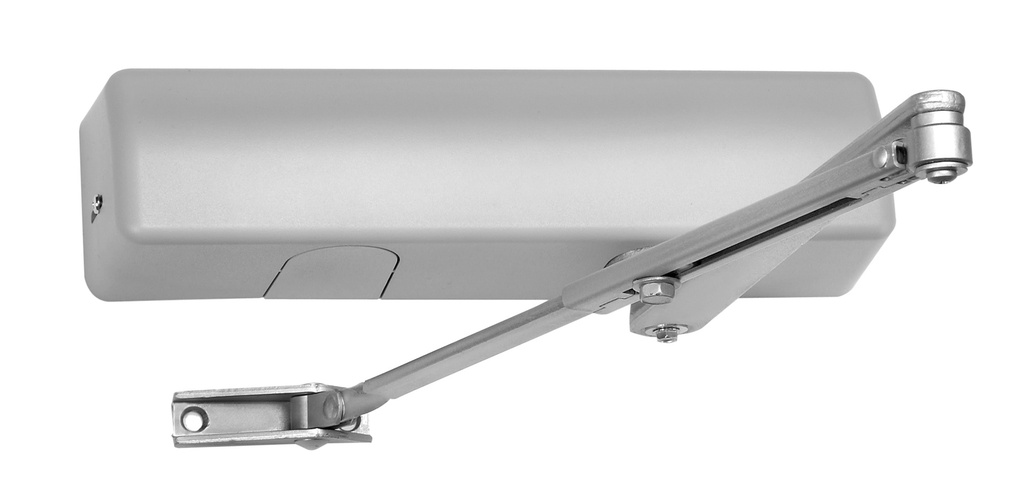

Corbin Russwin Door Closer DC6210 - Tri Pack - Regular, Parallel, Top Jamb Arm Applications, Multi-sized
Details
- Spring Power: DC6000 closers: multi-sized; fully adjustable sizes 1 through 6.
- Handing: Non-handed
- Body: Cast-iron case with seamless cold headed steel spring tube.
- Arm: Standard: forged steel.
- Spindle: Heat-treated steel with a crowned gear set for increased efficiency.
- Piston: 1-3/8" diameter; precision machined, heat-treated steel.
- Springs: Chrome silicon wire.
Valves
- Latching speed valve standard.
- Closing speed valve standard.
- Multiple backcheck location valve and backcheck intensity valve standard.
Seals: "O" rings
Fluid: Standard High Lubricity extreme temperature hydraulic fluid.
Degree of Opening: Up to full 180° opening standard for regular, top jamb and parallel arm mountings, conditions permitting.
Power Adjustment Arm Bracket: 15% adjustment standard
Cover: Standard Plastic V-O flame rated cover.
Mountings: Standard: Regular, Top jamb, Parallel Arm
Mounting Bracket: Quik-Install mounting bracket standard.
Fasteners: Standard: self-drilling screws.
Corrosion Protection: Painted protective coating on all metal surfaces for use in corrosive environments.
Warranty: 25 year limited warranty.
| General - US Finishes | 689 - Spray Alumimun or 690 - Spray Dark Bronze |
| Brand | Corbin Russwin |
| Series | Corbin-Russwin - DC6000 Series |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 4 5/16" x 1" |
CR DC6210 Closer 80-9360-6000-152.PDF
Download
Corbin Russwin DC6000 Catalog.pdf
Download
Corbin Russwin DC6000 Series DC6200, DC6400 Surface Door Closer with or without A1 Arm Regular Mounting Template.pdf
Download
Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with or without A1 Arm Parallel Arm Mounting Template.pdf
Download
Corbin Russwin DC6000 Series DC6220, DC6420 Surface Door Closer with or without A1, A6, A8 Arms Top Jamb Mounting Template.pdf
Download
