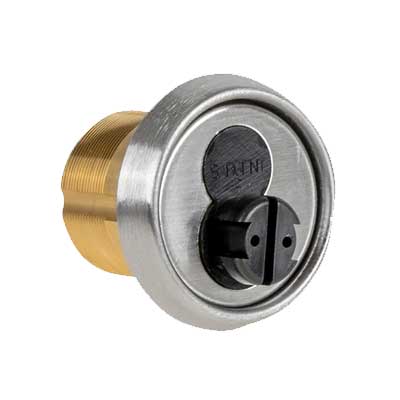

Sargent DG1 60-42 LFIC Degree Mortise Cylinder Housing, Less Core, 1-1/4" length
The Sargent DG1 60-42 is a professional-grade Mortise Cylinder Housing designed for high-security commercial applications. As a cornerstone of the Degree™ DG1 family, this housing is specifically engineered for Large Format Interchangeable Core (LFIC) systems. It allows for near-instant re-keying of an opening without the need to disassemble the lock or remove the housing from the door.
This model includes the 60- prefix, indicating it is supplied with a disposable plastic construction core. This allows contractors to operate doors during the construction phase using a simple tool, protecting your permanent, patented DG1 cores from site debris and unauthorized duplication until the project reaches final occupancy.
Critical Compatibility: The Degree LFIC Difference
It is vital to note that Degree Interchangeable Cores work exclusively with this specialized Mortise Housing. While the exterior profile of a Degree LFIC may appear identical to a standard Sargent 6300 LFIC Core, the internal mechanics are unique. The "Control" Arm of a Degree LFIC core projects less into the housing than a standard 6300 core.
Technical Warning: If you attempt to insert a Degree LFIC core into a standard (non-Degree) LFIC Mortise or Rim housing, the key will become trapped in the cylinder. This housing is precision-milled to accommodate the specific throw of the Degree control arm, ensuring smooth installation and key removal.
Technical Specifications
| Feature | Details |
| Model | Sargent 60-42 (DG1 Series) |
| Cylinder Type | Mortise Cylinder Housing (LFIC) |
| Core Compatibility | Exclusively for Sargent Degree LFIC Cores |
| Construction Core | Includes Disposable Plastic Core (60- Prefix) |
| Length | 1-1/4" |
| Diameter | 1-5/32" Standard |
| Cam Style | Standard Sargent Offset Cam (#13-0664) |
| Certification | ANSI/BHMA A156.5, Grade 1; UL Listed |
| Security Level | Degree DG1 (Patented Key Control) |
| Included Hardware | #97 Rosette and Compression Spring |
Why Professionals Choose the Sargent 60-42 Housing
At DoorwaysPlus.com, we emphasize the importance of system-matched hardware to maintain the integrity of your master key system.
- Patented Security: The Degree DG1 system provides a utility patent through 2027, offering legal protection against unauthorized key duplication and ensuring your facility remains secure.
- Grade 1 Durability: This housing is a Grade 1 component, providing the highest level of physical resistance for perimeter and high-traffic interior openings.
- Maintenance Efficiency: The LFIC design allows a single control key to swap cores across an entire campus in minutes, making it the ideal choice for hospitals, universities, and government buildings.
- Buy American Act: Assembled to meet domestic sourcing requirements, making it suitable for federal and municipal contracts.
| General - US Finishes | US26D - Satin Chrome |
| Sargent Mortise Cams | Standard |
| Brand | Sargent |
| Cylinder Type | Mortise Cylinder |
| Cylinder Options | LFIC - Sargent |
| Cylinder Length | 1-1/4" |
| Key Length | 6 Pin |
