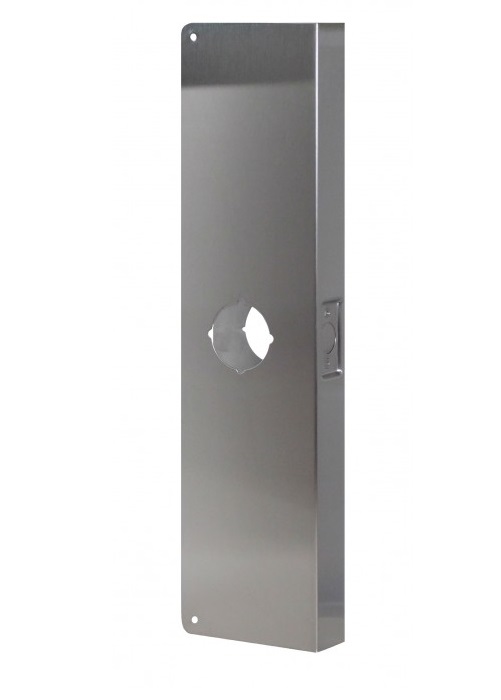

Don-Jo 20-CW Stainless Steel Wrap-Around Plate | 20" Extra-Long Door Reinforcer

The Don-Jo 20-CW Stainless Steel Wrap-Around Plate is an industrial-strength security and restoration solution designed for maximum coverage on commercial entryways. Measuring a massive 20 inches in height, this is one of the largest door wrap-around plates available, engineered to provide 360-degree reinforcement for the lock area while concealing extensive surface damage. It is the premier solution for door surface repair, effectively "blanking out" years of hardware footprints, "ghosting," or major splintering that would otherwise require a full door replacement.

Constructed for 1-3/4" thick doors, the 20-CW features a precision 2-1/8" hole prep positioned at a 2-3/4" backset. Its extra-long 5" x 20" profile makes it the ideal choice for high-traffic facilities undergoing significant hardware transitions or those requiring an extreme solution for commercial door security.

Key Features & Performance

• Unmatched Surface Coverage: The 20-inch height offers a vast surface area to act as a remodeling scar plate, hiding massive holes and structural imperfections far above and below the handle set.
• 360-Degree Structural Integrity: Envelopes both faces and the door edge to "sandwich" the lock area, providing a rigid steel barrier that protects against prying and forced entry.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering superior corrosion resistance and a clean, professional finish that coordinates with architectural hardware.

• Standard Cylindrical Prep: Includes a factory-punched 2-1/8" bore, making it ready for the immediate installation of commercial Grade 1 or Grade 2 lever sets and knobs.

• Industrial Restoration: Ideal for schools, hospitals, and industrial plants where maintaining the life of the door leaf is a cost-saving priority.

Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 20-CW
• Overall Size: 5" Width x 20" Height
• Door Thickness: 1-3/4"
• Backset: 2-3/4"
• Hole Prep: 2-1/8" (Standard Cylindrical)

• Material: Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Installation: Securely mounts to the door face and edge. For maximum anti-pry protection in high-security applications, the lockset's own thru bolts will pass through the plate to clamp the assembly permanently to the door.

Why Choose the Don-Jo 20-CW?

The Don-Jo 20-CW is the ultimate "problem-solver" for severely damaged or compromised openings. When a door is too damaged for a standard-sized plate, this stainless steel wrap plate bridges the gap with a massive wall of steel, restoring the door's strength to better-than-factory standards. It is a permanent, heavy-duty solution for door restoration that significantly enhances the security and aesthetic of any facility. By choosing the 20-CW, you are investing in a long-term solution for door edge reinforcement.

​
