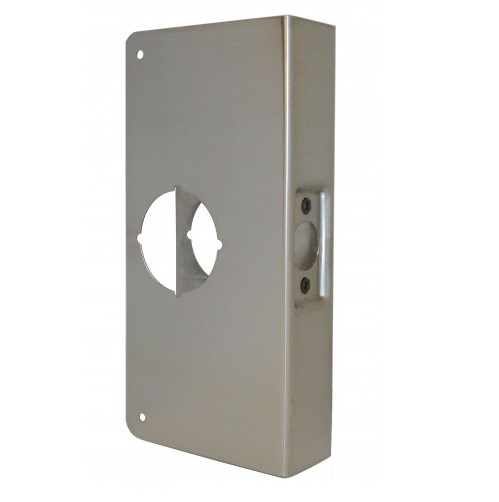

Don-Jo 3-CW Stainless Steel Wrap-Around Plate | 1-3/8" Door Reinforcer (2-3/4" Backset)

The Don-Jo 3-CW Stainless Steel Wrap-Around Plate is a high-performance security and restoration solution designed specifically for thinner 1-3/8" thick doors that require a commercial-standard 2-3/4" backset. Measuring 4-1/4" wide x 9" high, this heavy-duty door reinforcer provides 360-degree structural integrity by "sandwiching" the lock area in industrial-grade steel. It is the premier solution for door surface repair, designed to conceal "ghosting," splintering, or unsightly mounting marks left behind by previous hardware transitions.

Precision-manufactured with a 2-1/8" hole prep, the 3-CW allows for the installation of standard cylindrical locks on doors where the lock hole is set further from the edge. By reinforcing the most vulnerable point of the door leaf, it serves as a critical solution for door security, preventing the door from splitting during forced entry or high-frequency use.

Key Features & Performance

• 1-3/8" Door Optimization: Tailor-made for thinner residential or light-commercial doors, providing a flush, secure fit that strengthens the door's core without adding bulk.
• Extended 2-3/4" Backset: Specifically prepped for locks with a 2-3/4" backset, making it a specialized remodeling scar plate for unique hardware configurations on thinner door leaves.

• Professional Restoration: Effectively hides oversized bore holes, finish wear, or structural damage, providing a clean, factory-finished look for your entryway.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering superior corrosion resistance and a modern aesthetic that coordinates with high-end architectural trim.

• Structural Reinforcement: Strengthens the door to prevent hardware from loosening and provides a permanent solution for door edge reinforcement.


Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 3-CW
• Overall Size: 4-1/4" Width x 9" Height

• Door Thickness: 1-3/8"

• Backset: 2-3/4"
• Hole Prep: 2-1/8" Standard Cylindrical

• Material: Heavy-Gauge Stainless Steel
• Finish: US32D / 630 (Satin Stainless Steel)
• Installation: Includes all necessary mounting fasteners. For maximum stability, the lockset's mounting screws or thru bolts secure the assembly firmly to the door.

Why Choose the Don-Jo 3-CW?

The Don-Jo 3-CW is the industry-standard "problem solver" for unique door thicknesses. Most 1-3/8" doors are more susceptible to "kick-in" attacks; this stainless steel wrap plate provides the structural backbone of a commercial opening. It is a cost-effective and permanent solution for door restoration, delivering the industrial-strength security and polished appearance required to extend the life of your door and hardware.

​
