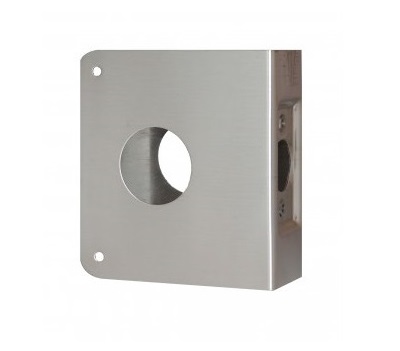

Don-Jo 5-CW Stainless Steel Wrap-Around Plate | 1-3/8" Residential Deadbolt Reinforcer

The Don-Jo 5-CW Stainless Steel Wrap-Around Plate is a high-security hardware essential designed to provide targeted reinforcement for the most vulnerable point of a residential entryway. Measuring a compact 4" wide x 4-1/2" high, this heavy-duty door reinforcer is engineered specifically for 1-3/8" thick doors. It is the premier solution for door surface repair when a door has been splintered or weakened by a forced entry attempt or accidental damage, providing a clean and professional way to restore structural integrity.

Unlike standard plates, the 5-CW is precision-manufactured with a 1-1/2" hole prep, specifically designed to accommodate smaller-bore deadbolts. By "sandwiching" the door edge and both faces in industrial-grade steel, it serves as a critical solution for door security, preventing the door from splitting under pressure and ensuring your deadbolt remains firmly anchored to the door leaf.

Key Features & Performance

• 1-3/8" Door Specific: Precision-fit for the thinner profile of standard residential interior and exterior doors, providing a flush, low-profile fit that strengthens the door without adding excessive bulk.
• 1-1/2" Deadbolt Prep: Features a factory-punched 1-1/2" bore, making it the ideal remodeling scar plate for older deadbolt styles or specialized security hardware requiring a smaller hole.
• Standard 2-3/8" Backset: Pre-prepped for a 2-3/8" backset, ensuring a "drop-in" installation for the most common residential lock configurations.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering superior corrosion resistance and a modern, brushed finish that coordinates with high-end hardware.
• Structural Reinforcement: Provides a permanent solution for door edge reinforcement, shielding the wood or metal core from prying tools and spreading.

Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 5-CW
• Overall Size: 4" Width x 4-1/2" Height
• Door Thickness: 1-3/8"
• Backset: 2-3/8"
• Hole Prep: 1-1/2" (Specialized Deadbolt Prep)
• Material: Heavy-Gauge Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Installation: Includes all necessary mounting fasteners. For maximum stability, the deadbolt’s own mounting screws or thru bolts secure the assembly firmly to the door.

Why Choose the Don-Jo 5-CW?

The Don-Jo 5-CW is the industry-standard "problem solver" for homeowners and property managers. Thinner 1-3/8" doors are often susceptible to "kick-in" failures; this stainless steel wrap plate provides a permanent steel barrier that significantly increases the strength of the lock area. It is a cost-effective and reliable

​
