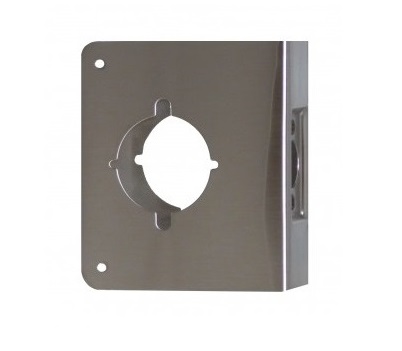

Don-Jo 5K-CW Stainless Steel Wrap-Around Plate - 2-3/4" Backset
The Don-Jo 5K-CW is a professional-grade Door Wrap-Around Plate designed to reinforce or repair doors at the lock prep location. Manufactured from heavy-duty US32D Satin Stainless Steel, this plate provides a clean, architectural finish while structurally bridging damage caused by forced entry, incorrect drilling, or heavy-duty use. The 5K-CW is specifically engineered with integrated mounting post notches to accommodate the unique chassis requirements of BEST 93K/73K and SARGENT 6500 series locksets.
Institutional Grade Features
- Specialized Lock Prep: Factory-prepared with a 2-1/8" bore and specialized notches that allow the mounting posts of Best and Sargent cylindrical locks to seat flush against the door.
- Structural Reinforcement: Clamps the door "sandwich-style" to prevent the door skin from splitting or deforming under the high-torque conditions of a Grade 1 lever lock.
- Corrosion Resistant Material: Constructed from high-quality stainless steel (US32D), making it ideal for coastal areas, hospitals, and high-moisture environments.
- Aesthetic Restoration: With an overall size of 4-3/4" x 5-1/2", this plate effectively covers previous oversized holes, splintered wood, or dented metal, restoring the door’s professional appearance.
- Precision Backset: Designed for the standard 2-3/4" backset, ensuring perfect alignment with existing commercial frames and strikes.
Technical Specifications
- Manufacturer: Don-Jo
- Model Number: 5K-CW
- Material: Stainless Steel (US32D / 630)
- Dimensions: 4-3/4" Height x 5-1/2" Width
- Door Thickness: 1-3/4"
- Backset: 2-3/4"
- Compatibility: BEST 93K & 73K Series; SARGENT 6500 Series
| Brand | Don-Jo |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Height | 5-1/2 Inch |
| Backset | 2-3/4" Backset |
| Door Thickness | 1-3/4" Dr Thickness |
| Lock Type | Cylindrical Lock |
Don-jo Wrap Around Plates 2010.pdf
Download
