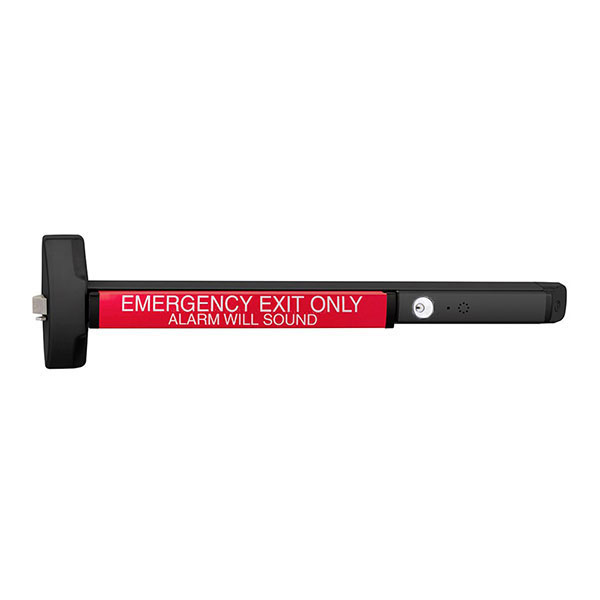

Accentra 6100ED-A-ALR Grade 1 Alarmed Rim Exit Device | 36" BSP | Exit Only
The Accentra 6100ED-A-ALR Rim Exit Device (formerly Yale) is a premium ANSI/BHMA Grade 1 life safety solution specifically engineered for high-traffic retail, commercial, and hospitality environments where loss prevention is a top priority. This architectural-grade panic bar combines the sleek, modern design of the 6000 Series with a powerful, integrated 90 dB battery-powered alarm to deter unauthorized use and theft. Finished in a sophisticated Black Suede Powder (BSP), this device provides an aesthetically pleasing look without compromising on heavy-duty security.
Designed for wide stile doors, the 6100ED-A-ALR features a 3/4" stainless steel deadlocking Pullman latchbolt for positive engagement and high resistance to vandalism. The "Exit Only" configuration is ideal for back-of-house service doors, emergency-only exits, and areas requiring immediate egress coupled with an audible alert.
Advanced Security & Loss Prevention Features
- Integrated 90 dB Alarm: A loud, built-in alarm sounds immediately when the pushpad is depressed, providing a clear audible signal for unauthorized exits.
- Key-Controlled Operation: The alarm is armed and disarmed using a standard 1-1/8" mortise cylinder (sold separately), allowing authorized personnel to bypass the alarm as needed.
- Visual Armed Status: A red LED indicator flashes every 30 seconds to provide a visual deterrent and confirm the system is armed.
- Tamper-Resistant Engineering: Includes a built-in safety monitor that triggers the alarm if tampering or unauthorized interference occurs.
- Flexible Alarm Modes: Choose between a Standard Mode (resets after 5 minutes) or a Continuous Mode (requires manual reset by key) to fit your facility's security protocols.
- Architectural BSP Finish: The Black Suede Powder finish offers a durable, matte-black appearance that is resistant to fingerprints and wear in high-use areas.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 6100ED-A-ALR-36-BSP |
| Device Type | Rim Exit Device with Exit Alarm |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Door Width | 36" (Fits 30" - 36" Door Openings) |
| Finish | BSP - Black Suede Powder Coat |
| Latchbolt | 3/4" Throw, Deadlocking Stainless Steel Pullman-Type |
| Power Source | One 9-Volt Battery (Included) |
| Cylinder Requirement | Less Mortise Cylinder (Requires 1-1/8" Straight Cam) |
| Stile Compatibility | Minimum 4-1/2" Wide Stile |
| Warranty | 10-Year Mechanical / 2-Year Electrical |
Professional Installation & Security Configuration
The Accentra 6100ED-A-ALR is designed for robust, long-term performance. Because this model is shipped Less Mortise Cylinder, you must provide a 1-1/8" straight cam mortise cylinder to operate the alarm's arming/disarming function. For maximum structural integrity on hollow metal or wood doors, we recommend the use of thru bolts to prevent the hardware from loosening under heavy use.
| Brand | Accentra (formally Yale Security) |
| Door Opening Width | 36 Inches |
| Finish with BHMA code | BSP - Black Suede Powder Coat |
| Exit Device Type | Rim Exit Device |
| Series | Accentra - 6000 Series |
| Exit Device Fire Rating | Non Rated Door |
| General - US Finishes | BSP - Black Suede Power Coat |
