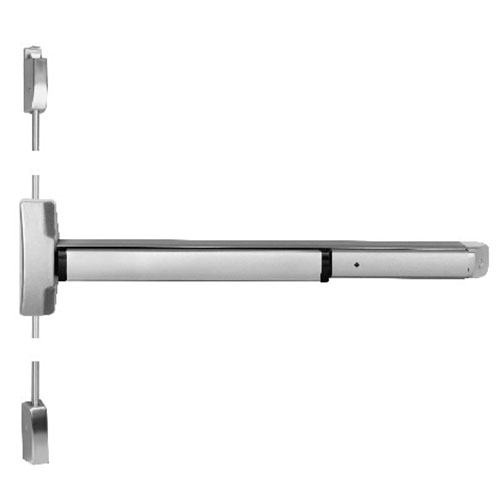

Accentra 6170ED Grade 1 Surface Vertical Rod Exit Device | 3'0" x 7'0" Door | 630 Satin Stainless Steel
The Accentra 6170ED Surface Vertical Rod (SVR) Exit Device (formerly Yale) is a premium, architectural-grade life safety solution engineered for high-traffic commercial environments. Finished in a stunning 630 (US32D) Satin Stainless Steel, this Grade 1 Surface Vertical Rod Device provides superior two-point latching security, securing the door at both the top and bottom of the frame. It is the ideal choice for designers and facility managers who demand the highest level of durability, corrosion resistance, and modern aesthetics for pairs of doors or double egress openings.
As part of the renowned 6000 Series, the 6170ED is designed for wide stile doors made of metal, wood, or composite materials. This "Exit Only" device ensures a safe and reliable exit path while its heavy-duty construction provides a significant deterrent against unauthorized entry.
Architectural Performance & High-Security Latching
- Two-Point Security: Features a top 3/4" Pullman-style latchbolt with automatic deadlatching and a bottom 5/8" deadbolt that remains retracted during the door swing to prevent floor damage.
- Satin Stainless Steel Finish (630/US32D): Beyond its sleek appearance, the stainless steel construction offers exceptional resistance to wear and corrosion in demanding environments like hospitals and high-end office suites.
- ANSI/BHMA Grade 1 Certified: Rigorously tested to exceed A156.3 standards, ensuring millions of cycles of reliable performance in the busiest institutional corridors.
- Universal Reversibility: The non-handed design allows for seamless field installation on both left and right-hand reverse door swings, reducing job-site complexity.
- Hex Key Dogging: Shipped standard with half-turn hex key dogging, allowing authorized personnel to manually retract the bolts and keep the push bar depressed during high-traffic hours.
- Versatile Sizing: While optimized for a standard 36" x 84" (3'0" x 7'0") opening, the rail can be field-cut to accommodate doors ranging from 30" to 36" in width.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 6170ED (Exit Only) |
| Device Type | Surface Vertical Rod (SVR) |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Finish | 630 - Satin Stainless Steel (US32D) |
| Door Size Compatibility | 36" Width x 84" Height (Standard) |
| Minimum Stile Width | 4-1/2" (Standard Wide Stile) |
| Top Strike | Roller Type 791 |
| Bottom Strike | Flush Mounted 790 |
| Handing | Completely Reversible |
| Warranty | 10-Year Limited Warranty |
Professional Installation & Structural Reliability
The Accentra 6170ED is engineered for a permanent, high-strength mount. To ensure the hardware remains perfectly aligned and secure on hollow metal or wood doors—especially in high-abuse settings—we recommend the use of thru bolts to achieve a robust "sandwich-style" attachment. While this model is configured for "Exit Only" operation, it is fully compatible with the wide range of Accentra Exit Device Trim options for applications requiring exterior keyed access.
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | SVR Exit Device |
| Series | Accentra - 6000 Series |
| Door Opening Width | 36 Inches |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Door Height | 7'0" Dr Ht |
| Exit Device Fire Rating | Non Rated Door |
