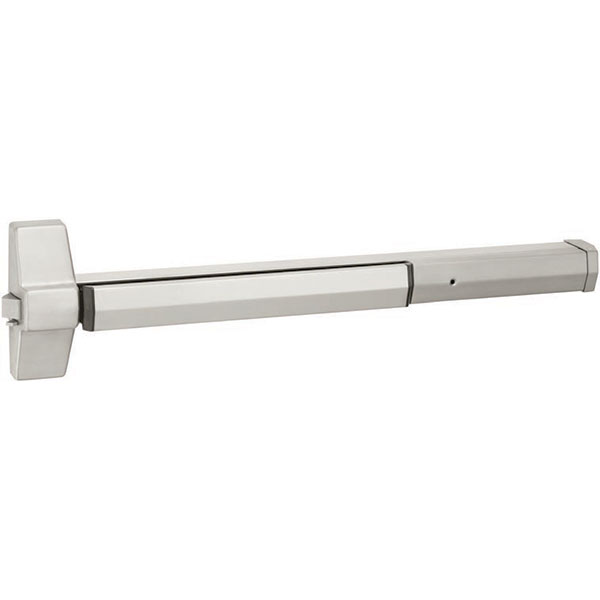

Accentra 7100 Rim Exit Device | Grade 1 Panic Rated | US32D Satin Stainless Steel
The Accentra 7100 Rim Exit Device (formerly Yale) is a high-intent, architectural-grade life safety solution engineered for high-use commercial and institutional openings. Finished in premium US32D Satin Stainless Steel (630), this Grade 1 Panic Bar provides superior corrosion resistance and a modern aesthetic, making it the premier choice for schools, hospitals, and high-traffic retail centers. This "Exit Only" device is designed for wide stile doors and offers a smooth, reliable egress path while maintaining heavy-duty perimeter security.
Equipped with a 3/4" throw deadlocking stainless steel pullman-type latchbolt, the 7100 Series ensures positive engagement with the strike, significantly increasing resistance to vandalism and forced entry. Its non-handed design and high-quality electroplated ferrous components guarantee long-term durability in the most demanding environments.
Industrial-Strength Security & Performance
- ANSI/BHMA Grade 1 Certified: Rigorously tested to exceed A156.3 Type 1 standards, ensuring millions of cycles of reliable operation in high-frequency areas.
- Satin Stainless Steel (US32D/630): The high-grade stainless finish provides a sleek, professional appearance while offering maximum protection against daily wear and environmental corrosion.
- Deadlocking Pullman Latchbolt: The 3/4" stainless steel latchbolt features a deadlocking mechanism that prevents "shimming" and unauthorized retraction, providing elite security.
- Universal Non-Handed Installation: Simplifies the ordering process and job-site setup by fitting both left and right-hand door swings seamlessly.
- Standard Hex Key Dogging: Shipped with hex key dogging, allowing authorized personnel to manually retract the latch and keep the bar depressed for convenient push/pull operation during business hours.
- Flexible Wide Stile Design: Perfectly suited for doors with a minimum stile width of 4-1/2", compatible with metal, wood, or composite materials.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 7100 (Exit Only) |
| Device Type | Rim Exit Device (Panic Rated) |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Finish | US32D / 630 (Satin Stainless Steel) |
| Door Width Compatibility | -36 (30"-36" Doors) or -48 (36"-48" Doors) |
| Minimum Stile Width | 4-1/2" (114mm) |
| Latchbolt | 3/4" (19mm) Deadlocking Stainless Steel Pullman-Type |
| Projection | 3-1/4" Active / 2-3/4" Dogged |
| Standard Strike | 757F Roller Strike |
| Warranty | 5-Year Limited Warranty |
Professional Installation & Structural Integrity
The Accentra 7100 is engineered for a permanent, high-strength mount. To ensure the hardware maintains its structural integrity on hollow metal or wood doors subject to constant physical stress, we recommend the use of thru bolts to achieve a secure "sandwich-style" attachment. While this model is configured for "Exit Only" operation, it is fully compatible with Accentra Exit Device Trim, such as the 620F Series Escutcheon or 540F Series Rose Trim, for applications requiring exterior keyed access.
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 7000 Series |
| Door Opening Width | 36 Inches |
| Exit Device Type | Rim Exit Device |
| Exit Device Fire Rating | Non Rated Door |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
