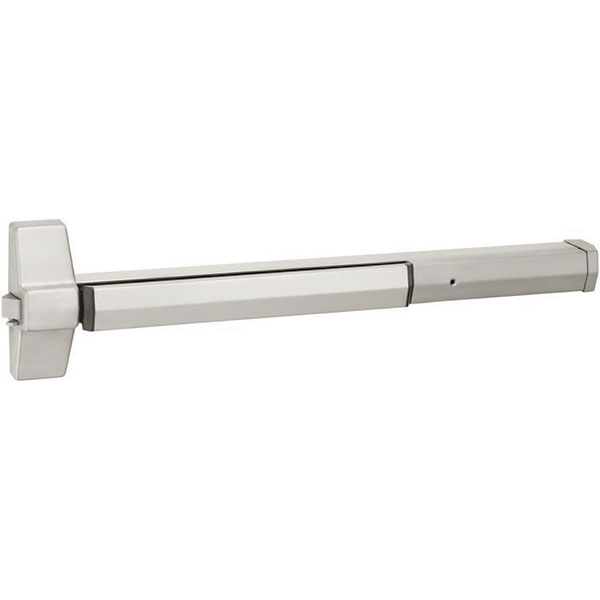

Accentra 7100 Rim Exit Device, Exit Only, US32D (Stainless Steel)
The 7100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. Designed for application in high-use areas, the 7100(F) comes in a variety of finishes and can be combined with a variety of trims to match any desired style.
- When "F" is added to the 7100 part number it stands for a 3 hour Fire-Rated Exit Device
UL/cUL Listed:
- FVSR/FVSR7 - Panic hardware
- GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.)
- ANSI/BHMA Certified: A156.3 Type 1, Grade 1
Features:
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel pullman latchbolt
- Electroplated ferrous components provide corrosion resistance
- Available in double cylinder function (handing must be specified)
Applications:
- Non-handed for easy installation
- Single swing doors
- Pairs of doors with removable mullions
- Metal, wood or composite door materials
Specifications:
Door Opening Width:-36 for 30" - 36" (76cm - 91cm) doors-48 for 36" - 48" (91cm - 122cm) doors
- Door Thickness: 1-3/4" (44mm) standard.
- Minimum Stile Width: 4-1/2" (114mm)
- Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
- Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type
- Strike: 757F, 793 optional (double door application, panic only)
- Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
- Trims: 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim, 121NL cylinder only.
- Dogging: Hex key dogging supplied standard on panic devices
- Warranty: 5-year limited
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 7000 Series |
| Door Opening Width | 36 Inches |
| Exit Device Type | Rim Exit Device |
| UL Label Door | Non Rated Door |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
