Accentra 7170F Fire-Rated Vertical Rod Exit Device (Less Bottom Rod) - 36 x 84 Door - Yale

https://www.doorwaysplus.com/web/image/product.template/4582/image_1920?unique=5c46e58

Accentra 7170F90-LBR Surface Vertical Rod Exit Device less Bottom Rod - Fire Rated - 36 x 84 Door Exit Only

2,144.10 2144.1 USD 2,144.10

2,144.10

Not Available For Sale


  • Brand
  • Exit Device Type
  • Series
  • Fire Rated
  • Door Opening Width
  • Finish with BHMA code
  • Door Height

This combination does not exist.


Share :

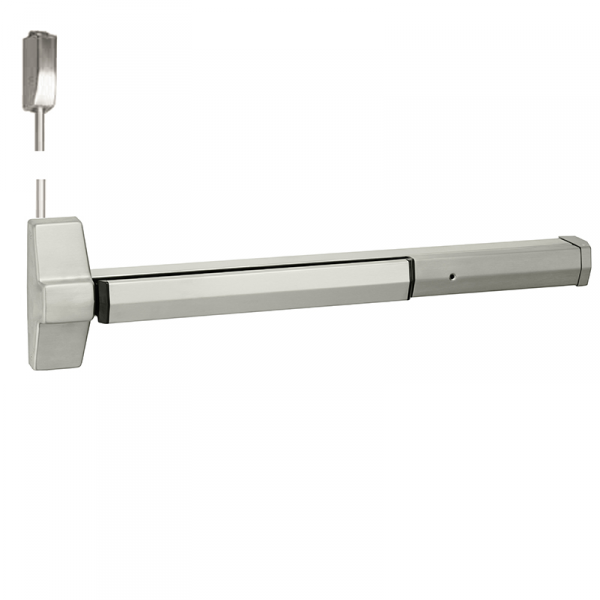

Accentra 7170F Fire-Rated Vertical Rod Exit Device (Less Bottom Rod) - 36" x 84" Door, US32D Stainless Steel Finish

Features:

  • Designed for wide stile and flush doors
  • Handed. Specify hand (field reversible)
  • Bottom deadbolt for secure latching
  • Fully adjustable roller strike

This exit device is engineered for those who demand both style and reliability. Certified to meet ANSI/BHMA A156.3, Grade 1 standards, it offers assurance of top-tier quality and safety. Crafted under a certified ISO 9001 quality system, this device stands out for its robust performance and meticulous design.

Additional Features:

  • Field Reversible Handing: Easily adaptable to left or right-hand doors, ensuring flexibility in installation.
  • Interlocking Top Strike and Latch Mounting Plate: Enhances security and stability, making it a solid choice for high-traffic areas.
  • Less Bottom Rod (LBR) Option: Provides a cleaner look while maintaining security, perfect for modern architectural designs.
  • Heat-Activated Door Bolt (Thermal Pin): Essential for fire-rated applications, this feature activates in high temperatures to secure the door firmly.

With its sleek lines and customizable finishes, this exit device not only meets the functional needs of any commercial setting but also complements its aesthetic appeal.

Applications:

  • Pairs of doors
  • Double egress
  • Metal, wood or composite door materials

Door Opening Width Information:

  • -36 for 30" - 36" (76cm - 91cm) doors
  • -48 for 36" - 48" (91cm - 122cm) doors
  • Door Opening Height: Standard door height 7' (213cm), with the device centerline at 39-15/16" (101cm) from floor.
  • Door Thickness: 1-3/4" (44mm) standard.
  • Minimum Stile Width: 4-1/2" (114mm)
  • Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged

UL Approved for openings up to 90 Min Rated

For those seeking detailed specifications, the fire rating for the 7170F LBR Fire-Rated Surface Vertical Rod Exit Device is comprehensive. It is designed to handle various configurations, ensuring safety and compliance across different scenarios:

  • 8' x 10' pairs: Rated for 1-1/2 hours.
  • 8' x 8' pairs: Rated for 3 hours.

This versatility ensures that the device meets stringent safety standards while providing peace of mind in diverse architectural settings. Whether you need a solution for larger openings or require extended protection, the device's ratings accommodate a wide range of applications.

Latchbolt Information:

  • Top: 3/4" (19mm) throw, pullman-type with automatic dead latching
  • Bottom5/8" (16mm) throw deadbolt, held retracted during door swing
  • Vertical Rods: 1/2" O.D. tubular brass, bronze or stainless steel with rod guides
  • Strike: Top: Roller type 791. Bottom: Flush mounted 790.
  • Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
  • Trims: 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim.
  • Dogging: Hex key dogging supplied standard on panic devices
  • Warranty: 5-year limited

Related Products in the Fire-Rated Surface Vertical Rod Series

When you're exploring options in the same series as the 7170F LBR Fire-Rated Surface Vertical Rod Exit Device, several complementary products are worth considering. Here's a detailed list of relevant items, each designed for heavy-duty use:

These options offer reliable solutions for different security needs, all while harmonizing within the same series. Each product emphasizes durability and usability, ensuring they meet the demands of frequent use.

Brand Accentra (formally Yale Security)
Exit Device Type SVR Exit Device
Series Accentra - 7000 Series
Fire Rated Fire Rated
Door Opening Width 36 Inches
Finish with BHMA code 630 - US32D Satin Stainless
Door Height 7'0" Dr Ht
