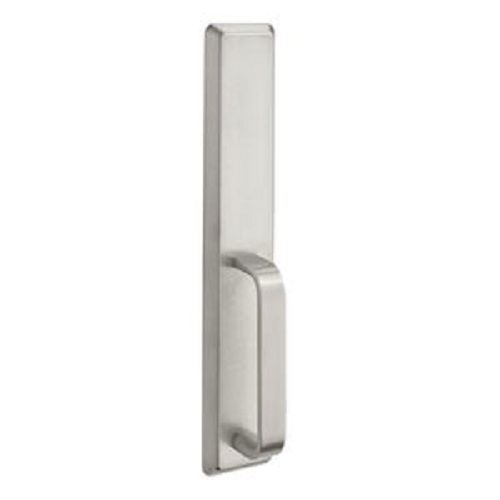

Accentra 634F Dummy Exit Device Trim | 630F Series Wide Pull | Grade 1
The Accentra 634F Dummy Exit Device Trim (formerly Yale) is a heavy-duty architectural solution designed for non-locking doors or the inactive leaf of a pair of double doors. As a Grade 1 certified pull trim, it is engineered to withstand the extreme rigors of high-traffic commercial environments, including schools, hospitals, and retail centers. This trim features a Dummy (ANSI 02) function, providing a sturdy grip pull that allows users to pull the door open when the interior exit device is dogged (unlatched).
Constructed with a solid forged/cast escutcheon and a wide 630F series plate, the 634F is built for maximum durability and security. Its beveled sides are specifically engineered to deflect prying tools, while the through-bolt mounting creates a high-strength "sandwich" attachment directly to the interior panic bar, preventing the trim from loosening or sagging over time.
Industrial Strength & Security Features
- Heavy-Duty Grip Pull: Features a substantial 6-7/16" center-to-center pull with a 2-1/8" projection, offering an ergonomic and durable grip for frequent daily use.
- ANSI/BHMA Grade 1 Certified: Rigorously tested to meet A156.3 standards, ensuring top-tier mechanical performance and long-term reliability.
- Vandal-Resistant Design: The solid wide escutcheon (2-3/4" x 15-1/2") covers standard door preps and utilizes beveled edges to significantly improve attack resistance.
- Dummy Function Utility: Provides a permanent exterior handle for doors that do not require keyed entry, making it ideal for exit-only doors that are occasionally used for entry when dogged.
- Field Reversible Handing: Although furnished as Right Hand Reverse (RHR), this hardware is fully field reversible to accommodate any door swing configuration during installation.
- Architectural Finishes: Stocked in US32D (630) Satin Stainless Steel and Black Suede Powder (BSP) for superior corrosion resistance and a modern, professional look.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 634F |
| Function | Dummy (ANSI 02) - Pull Plate |
| Trim Series | 630F Wide Pull Trim |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Plate Dimensions | 2-3/4" x 15-1/2" x 5/8" (70mm x 394mm x 16mm) |
| Pull Dimensions | 6-7/16" Centers x 2-1/8" Projection |
| Standard Door Thickness | 1-3/4" (44mm) |
| Handing | Field Reversible (Furnished RHR) |
| Warranty | 5-Year Limited Warranty |
Compatibility & Installation
The Accentra 634F Trim is specifically engineered for perfect synergy with Accentra (Yale) 7000, 6000, and 2100 Series Rim Exit Devices. For standard 1-3/4" thick doors, all necessary mounting hardware is included for a permanent, through-bolted installation.
The Accentra 634F Dummy Exit Device Trim is often paired with active trims on the primary door of a pair. If you are outfitting a new opening, you can find matching active functions like the 632F Night Latch or complete 7000 Series Panic Bars on DoorwaysPlus.com.
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 7000 Series, Accentra - 6000 Series, Accentra - 2100 Series |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Exit Device Trim Function | Dummy |
| Trim Design | Grip Pull |
