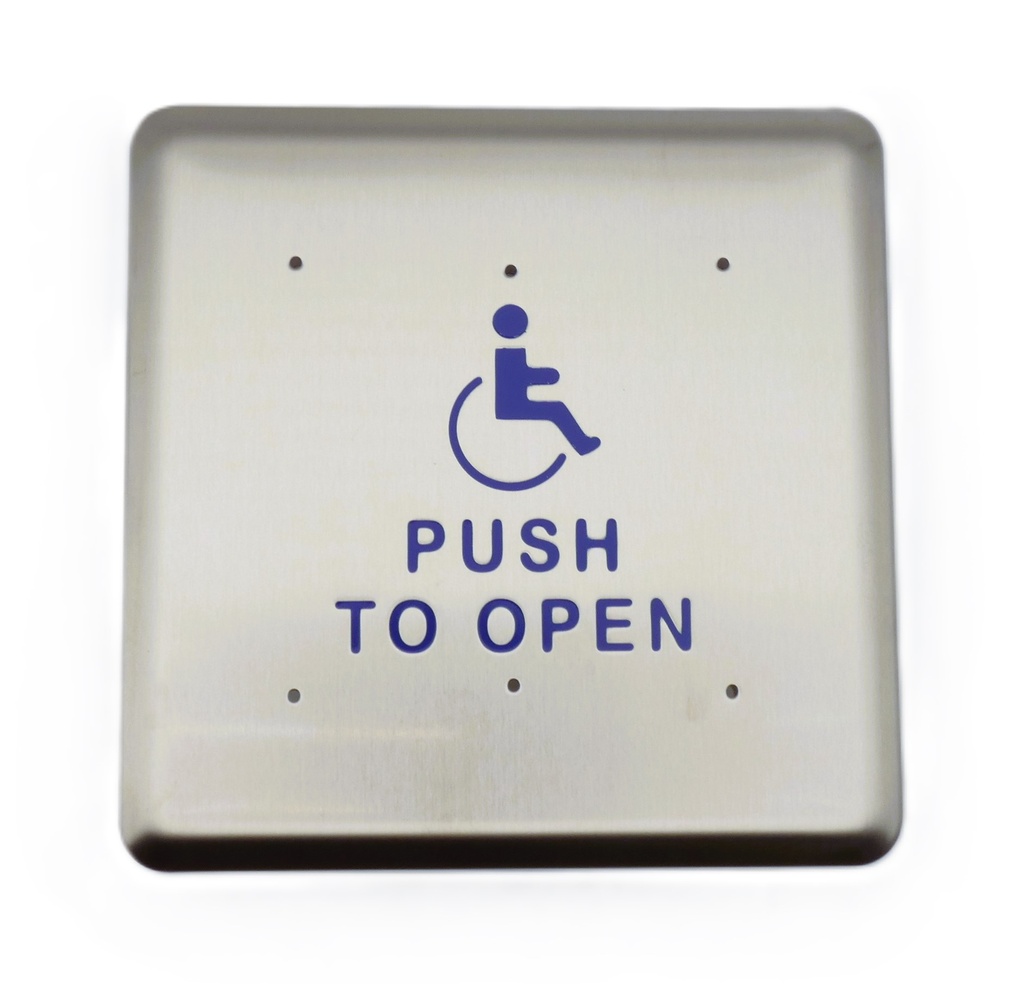

Hager 2-659-0169 Square 6" ADA Actuator – "Push to Open" with Handicap Logo

The Hager 2-659-0169 is a high-visibility, commercial-grade door activation switch designed for seamless integration with low energy power operators. Featuring a large 6" square profile, this actuator provides an expansive and accessible target area for users, ensuring effortless ADA compliance in demanding environments. The faceplate is manufactured from 16 gauge, 304 stainless steel, offering a beautiful and rugged US32D Satin Stainless Steel finish that resists scratches and heavy daily use.

Engineered for longevity, the 2-659-0169 features beveled edges to prevent snagging and embossed graphics—including both the "Push to Open" text and the universal handicap symbol—that are designed to remain legible for years without wearing down. This actuator is the ideal choice for medical centers, assisted living facilities, and modern office complexes.

Performance & Security Features

• Heavy-Duty Construction: Comprised of a 16-gauge stainless steel faceplate mounted to a 1/8" thick aluminum backplate for maximum rigidity.
• Reliable Switch Technology: Utilizes a 15A SPDT Cherry Switch, known for its precise tactile response and consistent electrical performance over thousands of cycles.
• Weather Resilient: This NEMA-rated component operates reliably in extreme temperatures ranging from -20º to 120ºF, making it suitable for both indoor and sheltered outdoor entryways.
• Tamper-Proof Hardware: Supplied with Allen head mounting fasteners (6-32 and 8-32) to prevent unauthorized removal in public areas.
• Wireless Flexibility: Designed for easy conversion to wireless operation by pairing with a 433MHz transmitter and receiver (sold separately).

Technical Specifications

Required & Compatible Accessories

To ensure a professional installation, the following accessories are available through DoorwaysPlus.com:

• 2-659-0241 Universal Backplate: Required when mounting the 6" square actuator to a double-gang electrical box.
• 2-659-0171 Surface Mount Box: The matching 6" square housing for surface-mount applications.
• 2-659-0184 (3V) or 2-659-0185 (9V) Wireless Transmitters: Required for cordless door activation.
• 2-659-0183 Wireless Receiver: The matching unit installed at the door operator to receive the wireless signal.

Ideal Use Cases

The Hager 2-659-0169 is specifically designed for Schools, Hospitals, Assisted Living Facilities, and Clean Rooms where high-visibility, reliable, and ADA-compliant access control is a priority.
